EZ-400-TM-RA-X

Active

Amphenol Times Microwave Systems

TNC-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

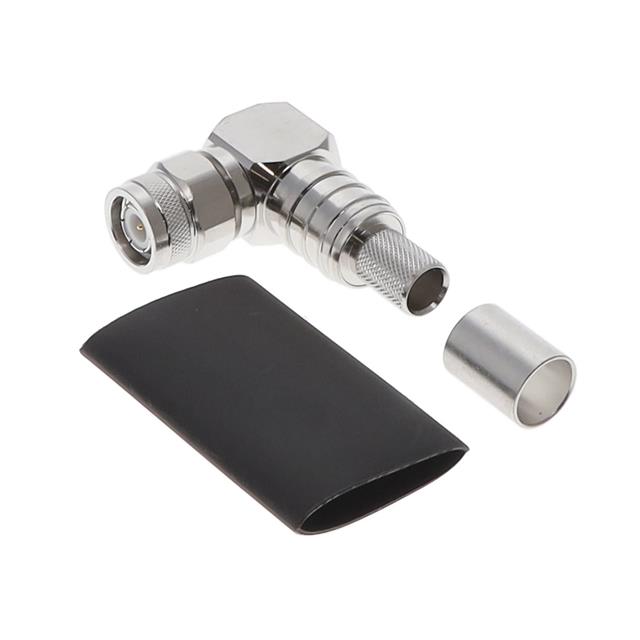

EZ-400-TM-RA-X

Active

Amphenol Times Microwave Systems

TNC-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-400-TM-RA-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp

EZ-400 Series

Part	Connector Type	Mounting Type	Dielectric Material	Housing Color	Cable Group	Connector Style	Frequency - Max [Max]	Contact Termination	Body Material	Voltage Rating	Impedance	Number of Ports	Center Contact Plating	Mating Cycles	Shield Termination	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Mounting Feature	Fastening Type	Insertion Loss
Amphenol Times Microwave Systems EZ-400-TF-PL-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-TF-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	750 VDC	50 Ohms	1	Gold	500	Crimp	Phosphor Bronze	125 °C	-55 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-NF-BH-X	Female Socket Jack		Polytetrafluoroethylene (PTFE)	Silver	LMR-400	N Type	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems EZ-400-4310M-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	4.3/10	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin
Amphenol Times Microwave Systems EZ-400-TM-PL-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass	2.5 kV	50 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-NMH-75-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400-75	N Type	3 GHz	Push On	Brass		75 Ohms	1	Gold	500	Crimp	Beryllium Copper	125 °C	-40 °C	White Bronze
Amphenol Times Microwave Systems EZ-400-QNF-X	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	QN	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin		Snap-On
Amphenol Times Microwave Systems EZ-400-TM-RA-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	TNC	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-55 °C	White Bronze			0.1 dB
Amphenol Times Microwave Systems EZ-400-QNM-X	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	QN	6000 MHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	125 °C	-40 °C	Tin		Snap-On
Amphenol Times Microwave Systems EZ-400-BM-RA-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Silver	LMR-400	BNC	4 GHz	Push On	Brass		50 Ohms	1	Gold		Crimp	Beryllium Copper	155 °C	-55 °C	White Bronze		Bayonet Lock	0.1 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 24.33
		10	$ 21.30
		25	$ 20.38
		50	$ 19.73
		100	$ 19.07
		250	$ 18.02
		500	$ 17.49

Description

General part information

EZ-400 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On
