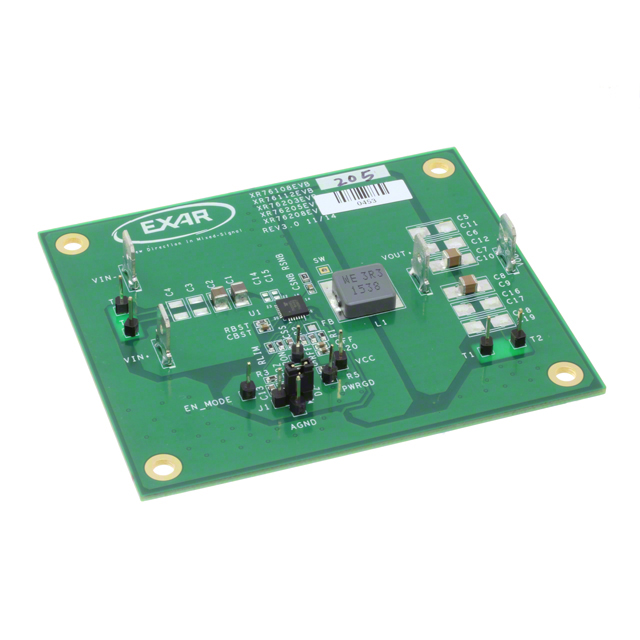

XR76205EVB-Q
ObsoleteMaxLinear, Inc.
EVAL BOARD FOR XR76205-Q
Deep-Dive with AI
Search across all available documentation for this part.
XR76205EVB-Q
ObsoleteMaxLinear, Inc.
EVAL BOARD FOR XR76205-Q
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XR76205EVB-Q |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 5 A |
| Frequency - Switching | 400 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | XR76205-Q |
| Voltage - Input | 24 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.56 | |
Description
General part information
XR76205 Series
XR76205-Q PowerBlox™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
No documents available
