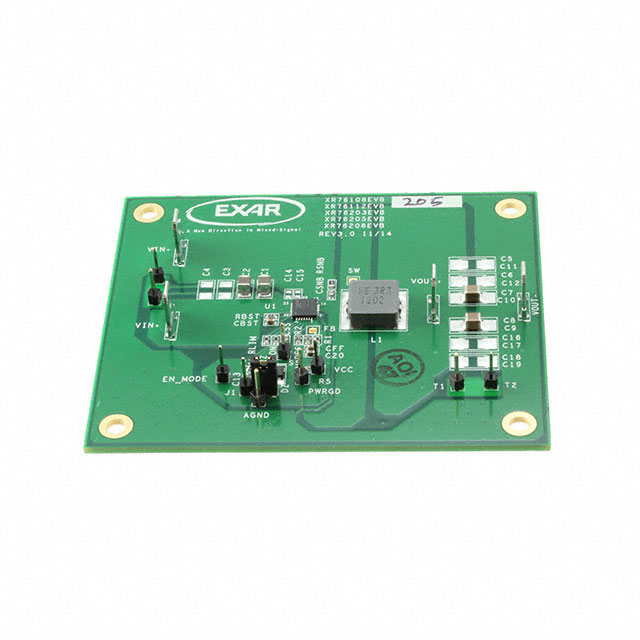

XR76205EVB
ActiveMaxLinear, Inc.
EVAL BOARD FOR XR76205
Deep-Dive with AI
Search across all available documentation for this part.
XR76205EVB
ActiveMaxLinear, Inc.
EVAL BOARD FOR XR76205
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XR76205EVB |
|---|---|
| Contents | Board(s) |
| Current - Output | 5 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1 Non-Isolated Output |
| Regulator Topology | Buck |
| Utilized IC / Part | XR76205 |
| Voltage - Input [Max] | 40 V |
| Voltage - Input [Min] | 5 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.07 | |
Description
General part information
XR76205 Series
XR76205 PowerBlox™ 1 Non-Isolated Output DC/DC, Step Down Evaluation Board
