09338102602

Obsolete

HARTING Technology Group

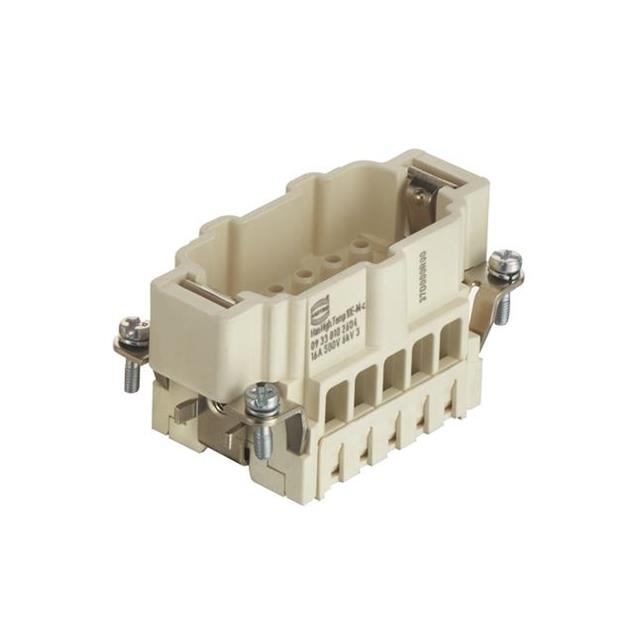

HAN HIGH TEMP 10E CRIMP MALE

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HAN HIGH TEMP 10E CRIMP MALE

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Gender	Current Rating (Amps)	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Size	Number of Positions	Termination Style	Housing Material	Material Flammability Rating	Color	Contact Material
HARTING Technology Group 09338102604	Insert without Contacts	Male	16 A	Han® E	500 V	200 °C	-40 °C	10B	10+Ground	Crimp	Liquid Crystal Polymer (LCP)
HARTING Technology Group 09338102701		Female	16 A		400 V	200 °C	-40 °C	10B	10+Ground	Screw	Liquid Crystal Polymer (LCP)	UL94 V-0	Gray	Copper Alloy
HARTING Technology Group 09338102602	Insert without Contacts	Male	16 A	Han® E	400 V	200 °C	-40 °C	10B	10+Ground	Crimp	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Male Insert without Contacts 10+Ground Position Crimp
