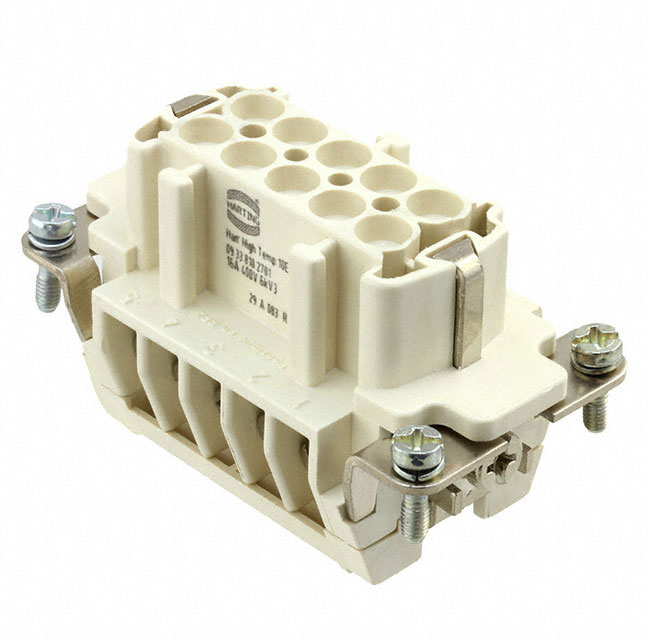

HEAVY DUTY CONNECTOR, 10+PE SIGNAL, HAN EMC/B, HIGH TEMP SERIES, INSERT, 11 CONTACTS, 10B

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HEAVY DUTY CONNECTOR, 10+PE SIGNAL, HAN EMC/B, HIGH TEMP SERIES, INSERT, 11 CONTACTS, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	09338102701

Color	Gray
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Screw
Voltage Rating	400 V

Part	Connector Type	Gender	Current Rating (Amps)	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Size	Number of Positions	Termination Style	Housing Material	Material Flammability Rating	Color	Contact Material
HARTING Technology Group 09338102604	Insert without Contacts	Male	16 A	Han® E	500 V	200 °C	-40 °C	10B	10+Ground	Crimp	Liquid Crystal Polymer (LCP)
HARTING Technology Group 09338102701		Female	16 A		400 V	200 °C	-40 °C	10B	10+Ground	Screw	Liquid Crystal Polymer (LCP)	UL94 V-0	Gray	Copper Alloy
HARTING Technology Group 09338102602	Insert without Contacts	Male	16 A	Han® E	400 V	200 °C	-40 °C	10B	10+Ground	Crimp	Liquid Crystal Polymer (LCP)
