09140203113

Active

HARTING Technology Group

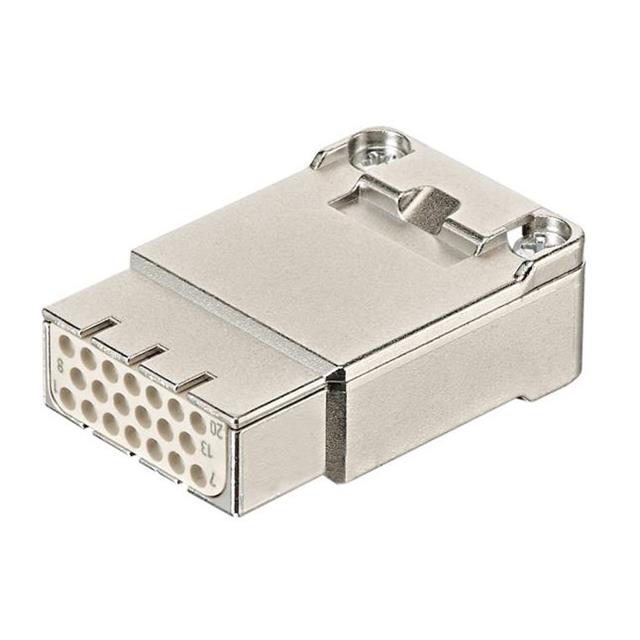

HEAVY DUTY INSERT, RCPT, 20POS, 0.52MM2

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, RCPT, 20POS, 0.52MM2

Technical Specifications

Parameters and characteristics for this part

Specification	09140203113

Connector Type	Module without Contacts
Current Rating (Amps)	4 A
Gender	Female
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	32 V

Part	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Housing Material	Current Rating (Amps)	Termination Style	Number of Positions	Voltage Rating	Color	Material Flammability Rating
HARTING Technology Group 09140203101	Module without Contacts	Han®	125 °C	-40 °C	Female	Polycarbonate (PC)	16 A	Crimp	20	600 V	Gray	UL94 V-0
HARTING Technology Group 09140203111	Module without Contacts				Female			Crimp
HARTING Technology Group 09140203011	Module without Contacts				Male			Crimp
HARTING Technology Group 09140203001	Module without Contacts	Han®	125 °C	-40 °C	Male	Polycarbonate (PC)	16 A	Crimp	20	600 V	Gray	UL94 V-0
HARTING Technology Group 09140203113	Module without Contacts		85 °C	-40 °C	Female	Liquid Crystal Polymer (LCP)	4 A	Crimp	20	32 V		UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts 20 Position Crimp
