09140203101

Active

HARTING Technology Group

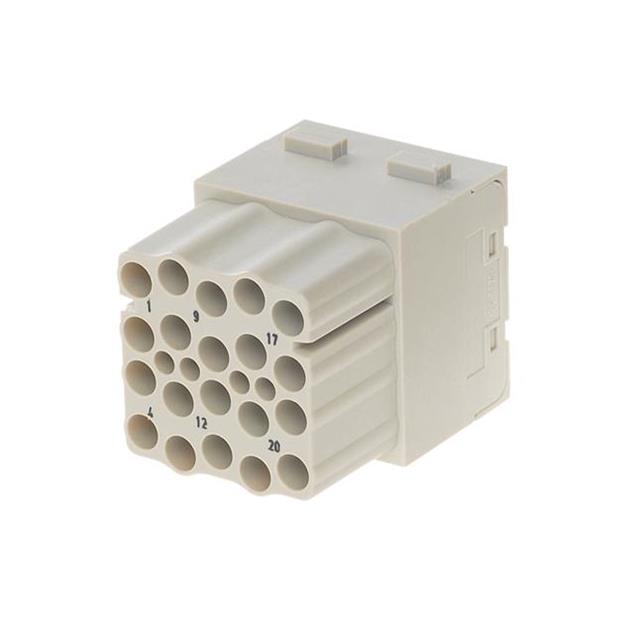

RECTANGULAR POWER CONNECTOR, HAN SERIES, CRIMP, RECEPTACLE, 20, SOCKET ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR POWER CONNECTOR, HAN SERIES, CRIMP, RECEPTACLE, 20, SOCKET ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	09140203101

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Housing Material	Current Rating (Amps)	Termination Style	Number of Positions	Voltage Rating	Color	Material Flammability Rating
HARTING Technology Group 09140203101	Module without Contacts	Han®	125 °C	-40 °C	Female	Polycarbonate (PC)	16 A	Crimp	20	600 V	Gray	UL94 V-0
HARTING Technology Group 09140203111	Module without Contacts				Female			Crimp
HARTING Technology Group 09140203011	Module without Contacts				Male			Crimp
HARTING Technology Group 09140203001	Module without Contacts	Han®	125 °C	-40 °C	Male	Polycarbonate (PC)	16 A	Crimp	20	600 V	Gray	UL94 V-0
HARTING Technology Group 09140203113	Module without Contacts		85 °C	-40 °C	Female	Liquid Crystal Polymer (LCP)	4 A	Crimp	20	32 V		UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts Gray 20 Position Crimp
