2280336

Active

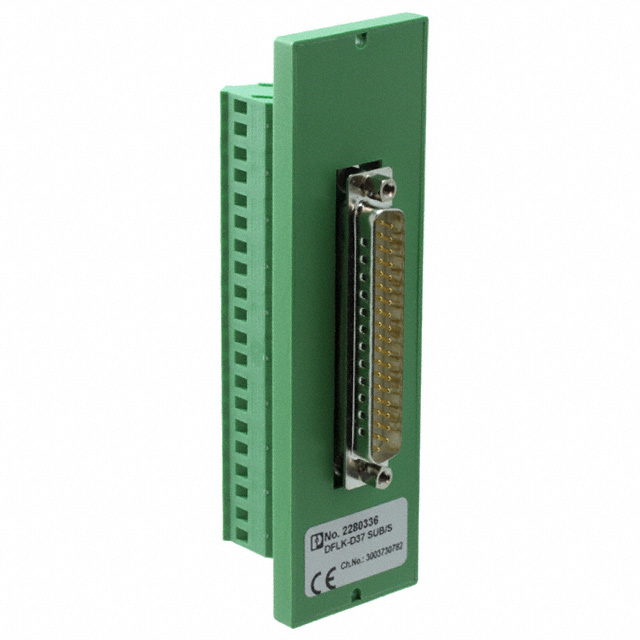

Phoenix Contact

INTER MOD D SUB PINSTRIP 37 POS

Search across all available documentation for this part.

Active

Phoenix Contact

INTER MOD D SUB PINSTRIP 37 POS

Technical Specifications

Parameters and characteristics for this part

Specification	2280336

Convert From (Adapter End)	2 Rows, 37 Pos
Convert From (Adapter End)	Terminal Blocks, Screw Connection
Convert To (Adapter End)	Male Pins, D-Sub
Convert To (Adapter End)	2 Rows, 37 Pos
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

Part	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2280336	Feed Through Panel Mount	D-Sub Male Pins	2 Rows 37 Pos	12 AWG	24 AWG	2 Rows 37 Pos	Screw Connection Terminal Blocks
Phoenix Contact 2903069	Feed Through Panel Mount	D-Sub Female Sockets	2 Rows 37 Pos	12 AWG	24 AWG		Terminal Blocks Screwless Connection 37 Pos 2 Rows
Phoenix Contact 2280349	Feed Through Panel Mount	D-Sub Female Sockets	2 Rows 37 Pos	12 AWG	24 AWG	2 Rows 37 Pos	Screw Connection Terminal Blocks
Phoenix Contact 2903056	Feed Through Panel Mount	D-Sub Male Pins	2 Rows 37 Pos	12 AWG	24 AWG		Terminal Blocks Screwless Connection 37 Pos 2 Rows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screw Connection, 37 Pos, 2 Rows To D-Sub, Male Pins, 37 Pos, 2 Rows
