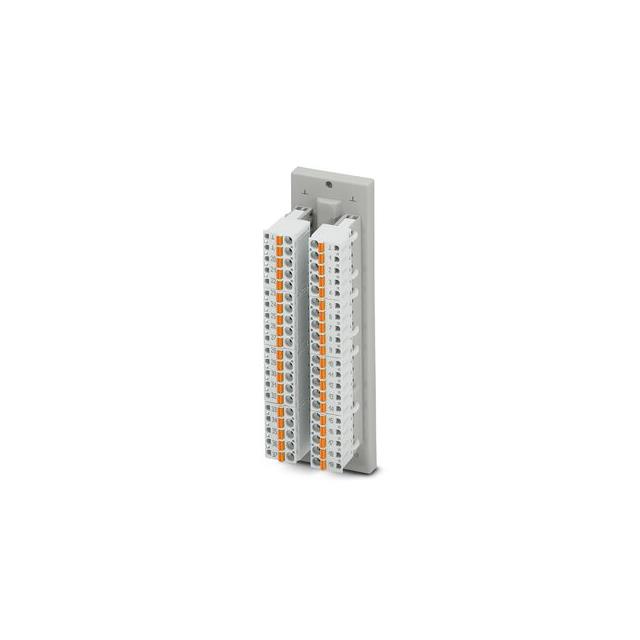

2903069

Active

Phoenix Contact

CONN MODULE DB37 FEEDTHROUGH

Search across all available documentation for this part.

Active

Phoenix Contact

CONN MODULE DB37 FEEDTHROUGH

Technical Specifications

Parameters and characteristics for this part

Specification	2903069

Convert From (Adapter End)	Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows
Convert To (Adapter End)	Female Sockets, D-Sub
Convert To (Adapter End)	2 Rows, 37 Pos
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

Part	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 2280336	Feed Through Panel Mount	D-Sub Male Pins	2 Rows 37 Pos	12 AWG	24 AWG	2 Rows 37 Pos	Screw Connection Terminal Blocks
Phoenix Contact 2903069	Feed Through Panel Mount	D-Sub Female Sockets	2 Rows 37 Pos	12 AWG	24 AWG		Terminal Blocks Screwless Connection 37 Pos 2 Rows
Phoenix Contact 2280349	Feed Through Panel Mount	D-Sub Female Sockets	2 Rows 37 Pos	12 AWG	24 AWG	2 Rows 37 Pos	Screw Connection Terminal Blocks
Phoenix Contact 2903056	Feed Through Panel Mount	D-Sub Male Pins	2 Rows 37 Pos	12 AWG	24 AWG		Terminal Blocks Screwless Connection 37 Pos 2 Rows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 212.80
Digikey	Bulk	1	$ 231.15

General part information

Adapter Terminal Blocks, Screwless Connection, 37 Pos, 2 Rows To D-Sub, Female Sockets, 37 Pos, 2 Rows
