DF37B-30DP-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.98/1.5MM MATED HEIGHT, BOARD-TO-BOARD / BOARD-TO-FPC CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

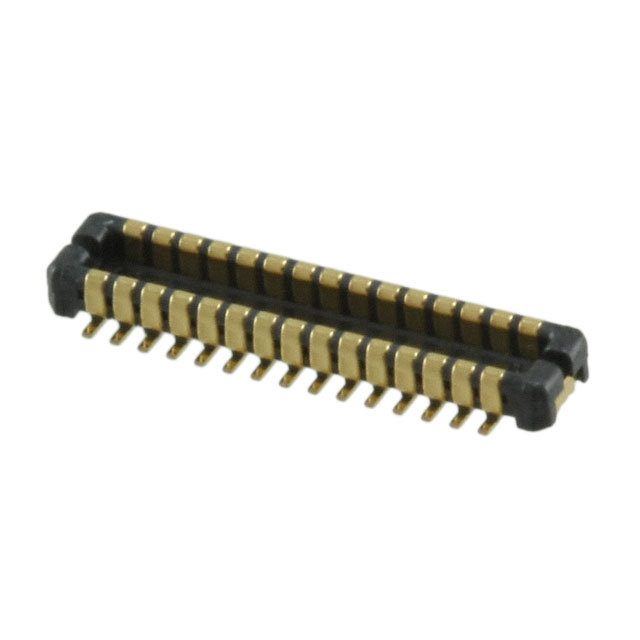

DF37B-30DP-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.98/1.5MM MATED HEIGHT, BOARD-TO-BOARD / BOARD-TO-FPC CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF37B-30DP-0.4V(53)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights [z]	0.98 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF37B Series

Part	Number of Rows	Features	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Connector Type	Number of Positions	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF37B-40DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	40
Hirose Electric USA, Inc. DF37B-16DS-0.4V(75)	2	Solder Retention	Surface Mount	Gold			0.016 in	0.4 mm	0.98 mm	Center Strip Contacts Receptacle		16	0.97 mm	0.038 in	4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-16DP-0.4V(53)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts		16
Hirose Electric USA, Inc. DF37B-50DP-0.4V(75)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	50				4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-24DS-0.4V(75)	2	Solder Retention	Surface Mount	Gold			0.016 in	0.4 mm	0.98 mm	Center Strip Contacts Receptacle	24		0.97 mm	0.038 in	4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-34DP-0.4V(73)
Hirose Electric USA, Inc. DF37B-40DP-0.4V(73)
Hirose Electric USA, Inc. DF37B-10DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	10
Hirose Electric USA, Inc. DF37B-50DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	50
Hirose Electric USA, Inc. DF37B-30DP-0.4V(53)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	30
