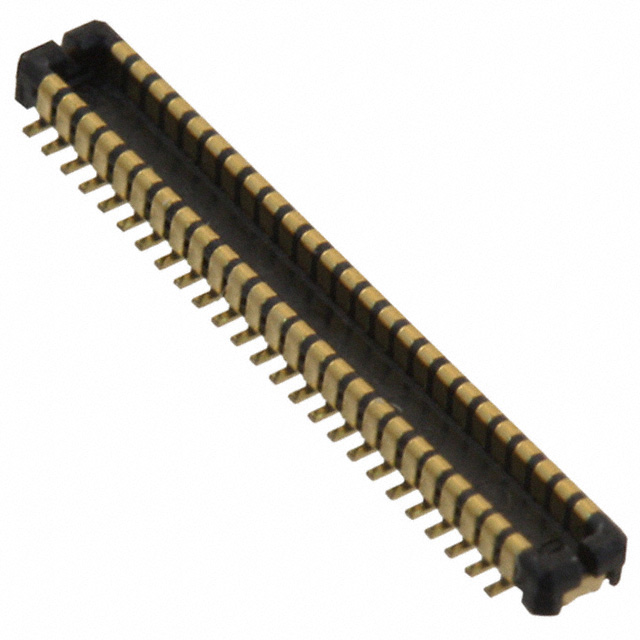

DF37B-50DP-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF37 Series Datasheet

DF37B-50DP-0.4V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 50POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet DF37 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF37B-50DP-0.4V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights [z]	0.98 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

DF37B Series

Part	Number of Rows	Features	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Connector Type	Number of Positions	Number of Positions	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. DF37B-40DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	40
Hirose Electric USA, Inc. DF37B-16DS-0.4V(75)	2	Solder Retention	Surface Mount	Gold			0.016 in	0.4 mm	0.98 mm	Center Strip Contacts Receptacle		16	0.97 mm	0.038 in	4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-16DP-0.4V(53)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts		16
Hirose Electric USA, Inc. DF37B-50DP-0.4V(75)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	50				4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-24DS-0.4V(75)	2	Solder Retention	Surface Mount	Gold			0.016 in	0.4 mm	0.98 mm	Center Strip Contacts Receptacle	24		0.97 mm	0.038 in	4 Áin	0.1 Ám
Hirose Electric USA, Inc. DF37B-34DP-0.4V(73)
Hirose Electric USA, Inc. DF37B-40DP-0.4V(73)
Hirose Electric USA, Inc. DF37B-10DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	10
Hirose Electric USA, Inc. DF37B-50DP-0.4V(51)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	50
Hirose Electric USA, Inc. DF37B-30DP-0.4V(53)	2	Solder Retention	Surface Mount	Gold	0.03 in	0.75 mm	0.016 in	0.4 mm	0.98 mm	Header Outer Shroud Contacts	30

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 0.79

Description

General part information

DF37B Series

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
