DB1C-A1LB

Active

ZF Electronics

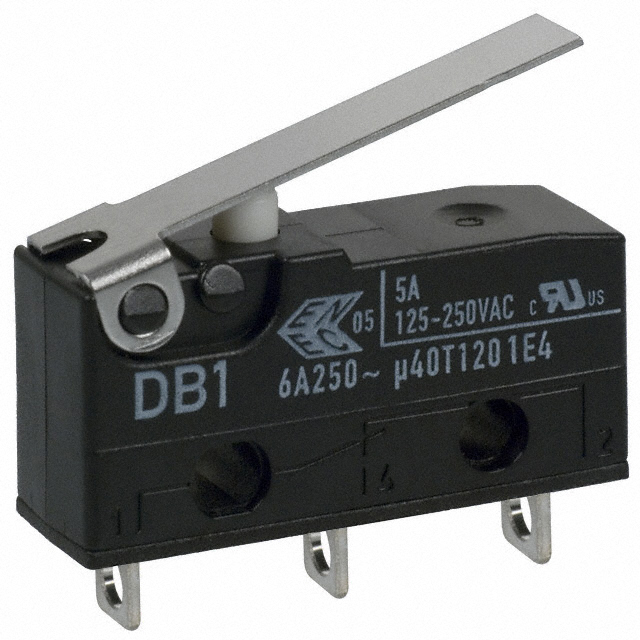

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DB1C-A1LB

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DB1C-A1LB

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	1 A, 5 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	6000 Cycles
Ingress Protection	IP50
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	60 gf
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	2 mm
Overtravel	0.079 in
Pretravel	4 mm
Pretravel	0.157 in
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	48 V

DB1C Series

Part	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Electrical Life	Operating Force	Operating Position	Operating Position	Ingress Protection	Termination Style	Mounting Type	Switch Function	Mechanical Life	Pretravel	Pretravel	Voltage Rating - AC	Circuit	Actuator Type	Voltage Rating - DC	Current Rating (Amps)
ZF Electronics DB1C-A1RC	0.6 mm	0.025 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	55 gf	0.638 in	16.2 mm	IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4.5 mm	0.178 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A
ZF Electronics DB1C-A1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1CB1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1C-A1RB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	65 gf			IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A
ZF Electronics DB1CB1LB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	60 gf			IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Straight	48 V	1 A 5 A
ZF Electronics DB1C-A1LB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	60 gf			IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Straight	48 V	1 A 5 A
ZF Electronics DB1C-C1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	PC Pin	Through Hole	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1C-B1RC	0.6 mm	0.025 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	55 gf	0.638 in	16.2 mm	IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	4.5 mm	0.178 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.74
		10	$ 1.60
		25	$ 1.50
		50	$ 1.47
		100	$ 1.18

Description

General part information

DB1C Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
