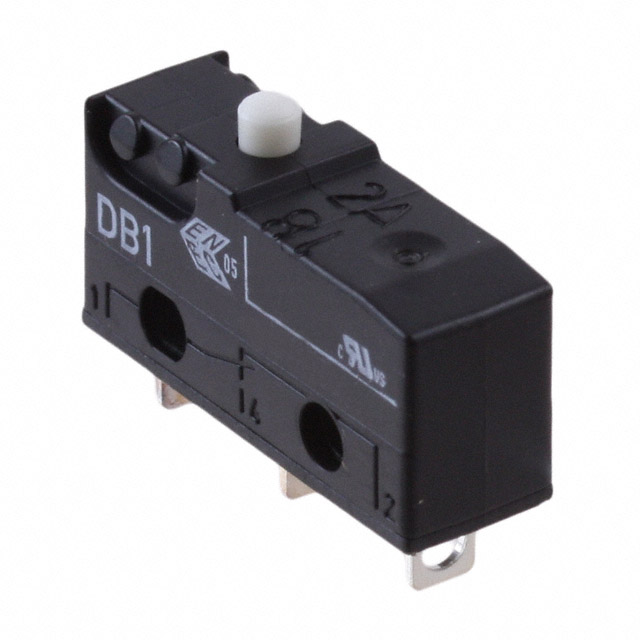

DB1C-A1AA

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DB1C-A1AA

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DB1C-A1AA

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	1 A, 5 A
Differential Travel	0.1 mm
Differential Travel	0.004 in
Electrical Life	6000 Cycles
Ingress Protection	IP50
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	150 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.6 mm
Overtravel	0.025 "
Pretravel	0.04 in
Pretravel	1 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	48 V

DB1C Series

Part	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel	Electrical Life	Operating Force	Operating Position	Operating Position	Ingress Protection	Termination Style	Mounting Type	Switch Function	Mechanical Life	Pretravel	Pretravel	Voltage Rating - AC	Circuit	Actuator Type	Voltage Rating - DC	Current Rating (Amps)
ZF Electronics DB1C-A1RC	0.6 mm	0.025 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	55 gf	0.638 in	16.2 mm	IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4.5 mm	0.178 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A
ZF Electronics DB1C-A1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1CB1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1C-A1RB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	65 gf			IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A
ZF Electronics DB1CB1LB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	60 gf			IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Straight	48 V	1 A 5 A
ZF Electronics DB1C-A1LB	0.5 mm	0.02 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	60 gf			IP50	Solder Lug	Chassis Mount	On-Mom	15000000 Cycles	4 mm	0.157 in	125 V	SPDT	Lever Straight	48 V	1 A 5 A
ZF Electronics DB1C-C1AA	0.1 mm	0.004 in	-40 °C	120 °C	0.6 mm	0.025 "	6000 Cycles	150 gf	0.33 in	8.4 mm	IP50	PC Pin	Through Hole	On-Mom	15000000 Cycles	1 mm	0.04 in	125 V	SPDT	Round (Pin Plunger)	48 V	1 A 5 A
ZF Electronics DB1C-B1RC	0.6 mm	0.025 in	-40 °C	120 °C	2 mm	0.079 in	6000 Cycles	55 gf	0.638 in	16.2 mm	IP50	Quick Connect - 0.110" (2.8mm)	Chassis Mount	On-Mom	15000000 Cycles	4.5 mm	0.178 in	125 V	SPDT	Lever Roller	48 V	1 A 5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.01
		10	$ 1.86
		25	$ 1.74
		50	$ 1.70
		100	$ 1.36

Description

General part information

DB1C Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
