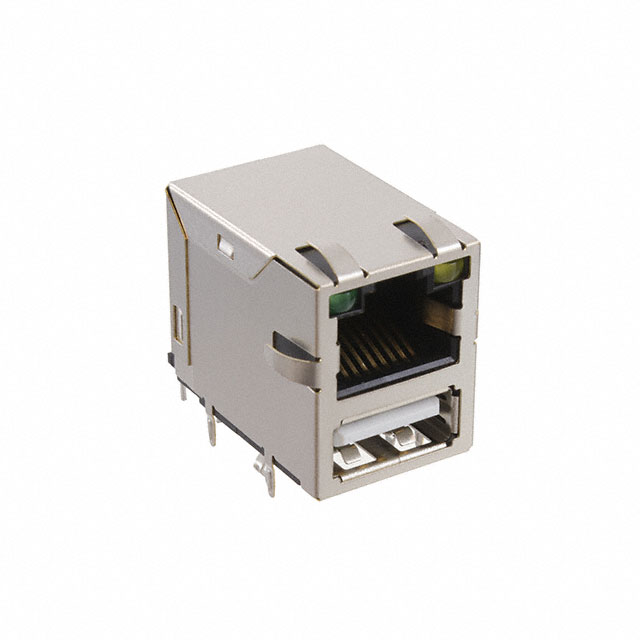

MTJ-USB-88JX1-FS-PG-LH-M41C

Active

Adam Tech

MODULAR JACK / USB COMBO CONNECT

Search across all available documentation for this part.

Active

Adam Tech

MODULAR JACK / USB COMBO CONNECT

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	LED Color	Contact Finish Thickness	Connector Type	Mounting Type	Number of Cores per Jack	Contact Finish	Height Above Board	Height Above Board	Termination	Number of Rows	Number of Ports	Shield Material	Tab Direction	Orientation	Height Above Board [z]	Height Above Board [z]	Housing Material	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]
Adam Tech MTJ-USB-88JX1-FS-PG-LH-M49	Shielded EMI Finger	Green Yellow	Flash	RJ45 with USB A	Through Hole	8	Gold	21.1 mm	0.831 "	Solder	1	1	Stainless Steel	Down	90 °
Adam Tech MTJ-USB-88JX1-FS-PG-LL-M41	Shielded EMI Finger	Green Orange Yellow	Flash	RJ45 with USB A	Through Hole		Gold			Solder	1	1	Copper Alloy Nickel Coated	Up	90 °	0.829 "	21.06 mm	Polybutylene Terephthalate (PBT) Glass Filled	Board Lock Solder Retention	Phosphor Bronze	70 °C	0 °C
Adam Tech MTJ-USB-88JX1-FS-PG-LH-M41C	Shielded EMI Finger	Green Yellow	Flash	RJ45 with USB A	Through Hole		Gold			Solder	1	1	Brass Nickel Coated	Up	90 °	0.829 "	21.06 mm		Board Lock Solder Retention	Copper Alloy	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5000	$ 2.22
