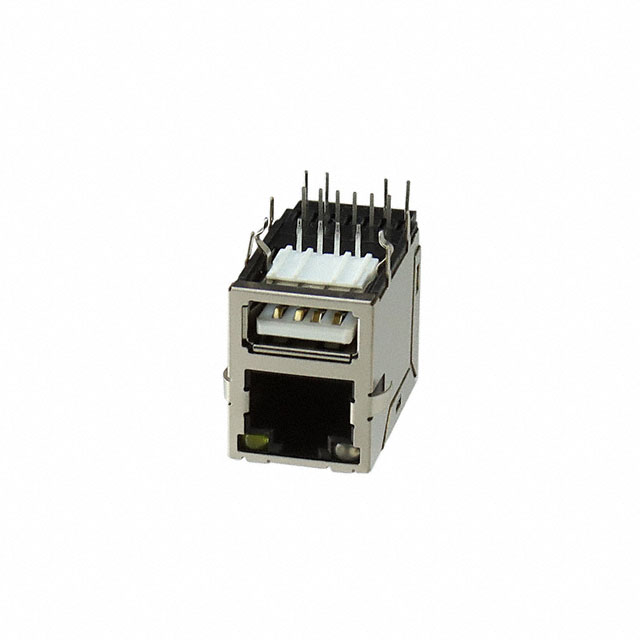

MTJ-USB-88JX1-FS-PG-LL-M41
ActiveAdam Tech
CONN JACK 1PORT PCB
Deep-Dive with AI
Search across all available documentation for this part.
MTJ-USB-88JX1-FS-PG-LL-M41
ActiveAdam Tech
CONN JACK 1PORT PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTJ-USB-88JX1-FS-PG-LL-M41 |
|---|---|
| Connector Type | RJ45 with USB A |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Solder Retention |
| Height Above Board [z] | 0.829 " |
| Height Above Board [z] | 21.06 mm |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| LED Color | Orange, Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Copper Alloy, Nickel Coated |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 5000 | $ 4.42 | |
Description
General part information
MTJ-USB-8 Series
1 Port RJ45 with USB A Through Hole
