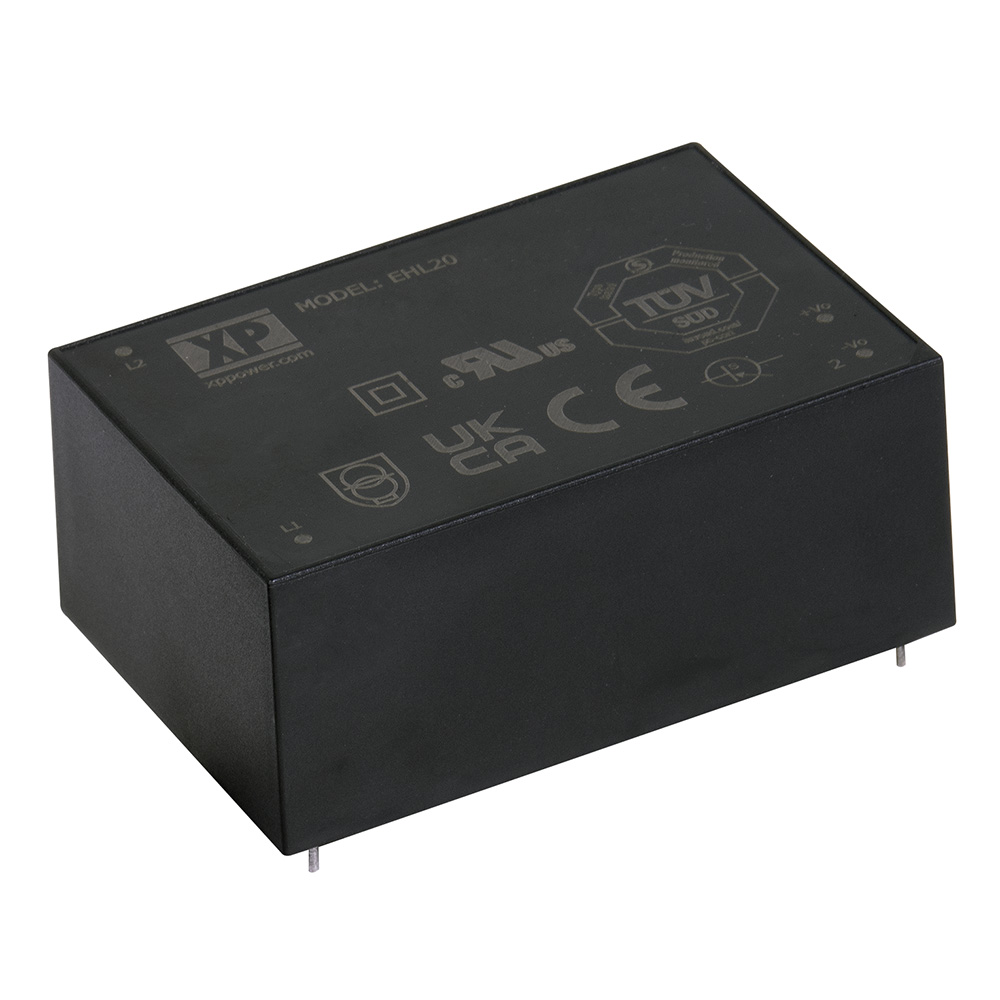

EHL20US15

Active

XP POWER

CONVERTER: AC/DC; 20W; UOUT: 15VDC; IOUT: 1.33A; OUT: 1; 86%; EHL; THT

Search across all available documentation for this part.

Active

XP POWER

CONVERTER: AC/DC; 20W; UOUT: 15VDC; IOUT: 1.33A; OUT: 1; 86%; EHL; THT

Technical Specifications

Parameters and characteristics for this part

Specification	EHL20US15

Applications	Household Appliances, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output (Max) [Max]	1.33 A
Efficiency	86 %
Line Regulation	1 %
Load Regulation	2 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	4-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	69.9 mm
Size / Dimension [x]	2.75 in
Size / Dimension [y]	47 mm
Size / Dimension [y]	1.85 "
Size / Dimension [z]	29.2 mm
Size / Dimension [z]	1.15 "
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	528 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	15 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Line Regulation	Applications	Power (Watts)	Standard Number	Number of Outputs	Approval Agency	Mounting Type	Load Regulation	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max)
XP POWER EHL20US24	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	88 %	24 V	-25 °C	70 °C	830 mA	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL20US15	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	86 %	15 V	-25 °C	70 °C	1.33 A	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL20US09	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	85 %	9 V	-25 °C	70 °C	2.22 A	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL05US15	23 mm	52.4 mm	0.91 in	2.06 in	27.2 mm	1.07 in	0.5 %	Household Appliances ITE (Commercial)	5 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	1 %	83 %	15 V	-40 °C	80 ¯C		Enclosed	4-DIP Module	528 VAC	85 VAC	330 mA
XP POWER EHL20US12	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	86 %	12 V	-25 °C	70 °C	1.67 A	Enclosed	4-DIP Module	528 VAC	85 VAC
