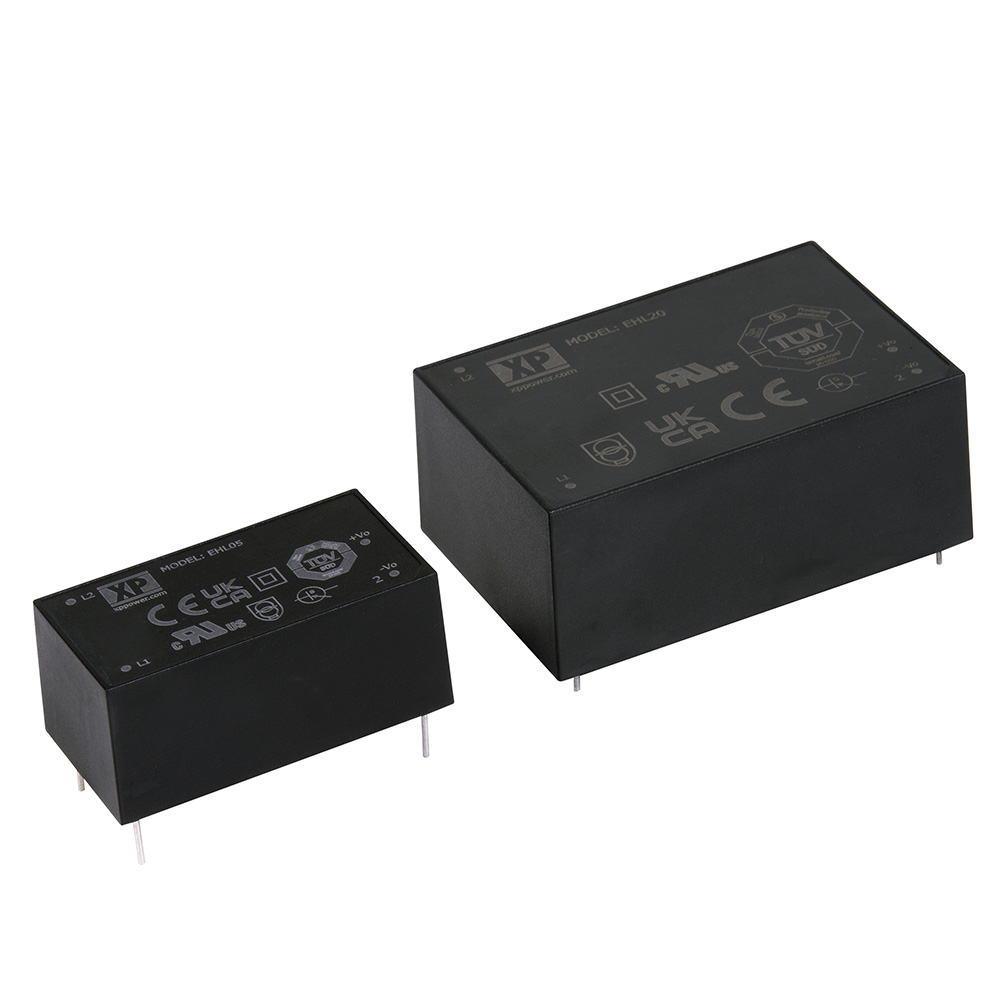

EHL05US15

Active

XP POWER

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, INDUSTRIAL & HOUSEHOLD, 1 OUTPUT, 5 W, 15 VDC, 330 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Declaration of Conformity EN

EHL05US15

Active

XP POWER

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, INDUSTRIAL & HOUSEHOLD, 1 OUTPUT, 5 W, 15 VDC, 330 MA

Deep-Dive with AI

DocumentsDatasheet Declaration of Conformity EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHL05US15

Applications	Household Appliances, ITE (Commercial)
Approval Agency	TUV, cURus, CE, UKCA
Current - Output (Max)	330 mA
Efficiency	83 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	52.4 mm
Size / Dimension [x]	2.06 in
Size / Dimension [y]	27.2 mm
Size / Dimension [y]	1.07 in
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	528 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	15 V

ehl Series

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Line Regulation	Applications	Power (Watts)	Standard Number	Number of Outputs	Approval Agency	Mounting Type	Load Regulation	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max)
XP POWER EHL20US24	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	88 %	24 V	-25 °C	70 °C	830 mA	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL20US15	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	86 %	15 V	-25 °C	70 °C	1.33 A	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL20US09	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	85 %	9 V	-25 °C	70 °C	2.22 A	Enclosed	4-DIP Module	528 VAC	85 VAC
XP POWER EHL05US15	23 mm	52.4 mm	0.91 in	2.06 in	27.2 mm	1.07 in	0.5 %	Household Appliances ITE (Commercial)	5 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	1 %	83 %	15 V	-40 °C	80 ¯C		Enclosed	4-DIP Module	528 VAC	85 VAC	330 mA
XP POWER EHL20US12	29.2 mm	69.9 mm	1.15 "	2.75 in	47 mm	1.85 "	1 %	Household Appliances ITE (Commercial)	20 W	60335-1 62368-1	1	CE cURus TUV UKCA	Through Hole	2 %	86 %	12 V	-25 °C	70 °C	1.67 A	Enclosed	4-DIP Module	528 VAC	85 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.50
		5	$ 17.95
		10	$ 17.39
		25	$ 16.65
		100	$ 15.54
Newark	Each	1	$ 18.50
		5	$ 17.95
		10	$ 17.39
		25	$ 16.65
		100	$ 15.54
TME	N/A	1	$ 51.11
		5	$ 49.73
		10	$ 48.36
		25	$ 45.93
		100	$ 43.52

Description

General part information

ehl Series

EHL05US15 is an EHL05 series PCB mount single output power supply that delivers 5W of power and offers single output voltage. This high power-density power supply features a wide 85 to 528VAC input, specifically designed for phase-to-phase operation in a 480VAC system. The EHL05 series also offers OVC III compliance, Class II construction, worldwide industrial and household safety approvals, making it suitable for a wide range of industrial applications and control systems in commercial and residential buildings, security and 3 phase power supplies.
