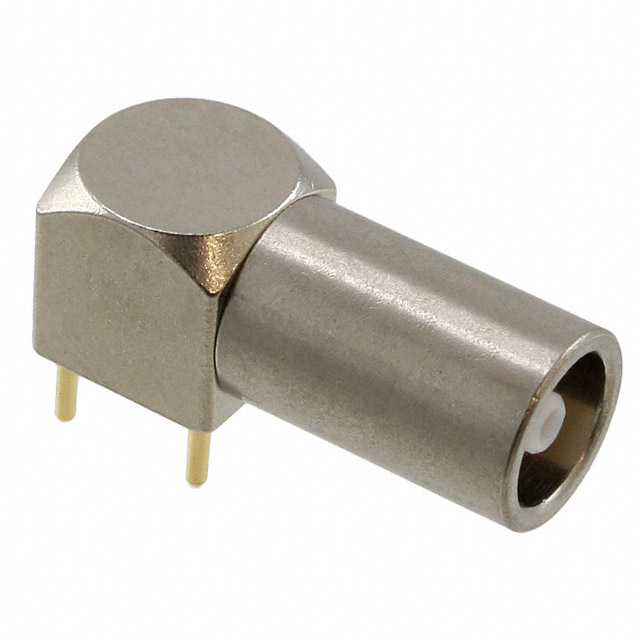

EPL.00.250.NTN - EPL.00.250.NTN

EPL.00.250.NTN

Active
LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationEPL.00.250.NTN
Body FinishNickel
Body MaterialBrass
Center Contact MaterialBronze
Center Contact PlatingGold
Connector StyleNIM-CAMAC CD/N 549
Connector TypeReceptacle, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypePush-Pull
Housing ColorSilver
Impedance50 Ohms
Ingress ProtectionIP50
Mating Cycles5000
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Operating Temperature [Max]260 ░C
Operating Temperature [Min]-55 °C
Shield TerminationSolder
Voltage Rating700 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 21.34
10$ 18.68
25$ 17.88
50$ 17.30
100$ 16.72
250$ 15.80
500$ 15.34

Description

General part information

EPL.00.250 Series

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
