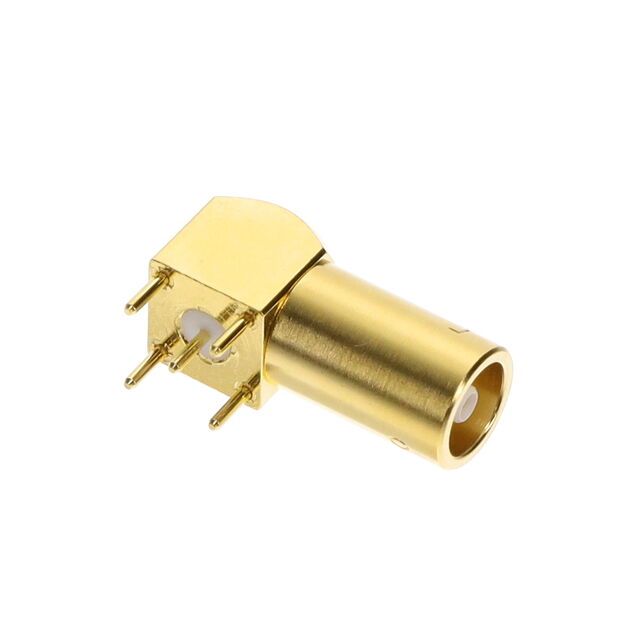

EPL.00.250.DTN

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPL.00.250.DTN

Body Finish	Gold
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

Part	Fastening Type	Contact Termination	Mounting Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Voltage Rating	Impedance	Center Contact Plating	Dielectric Material	Connector Type	Center Contact Material	Shield Termination	Connector Style	Body Material	Housing Color	Number of Ports	Body Finish
LEMO EPL.00.250.RTN	Push-Pull	Solder	Through Hole Right Angle	IP50	-55 °C	260 ░C	5000	700 VDC	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	Bronze	Solder	NIM-CAMAC CD/N 549
LEMO EPL.00.250.NTN	Push-Pull	Solder	Through Hole Right Angle	IP50	-55 °C	260 ░C	5000	700 VDC	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	Bronze	Solder	NIM-CAMAC CD/N 549	Brass	Silver	1	Nickel
LEMO EPL.00.250.NTD	Push-Pull	Solder	Through Hole Right Angle	IP50	-55 °C	260 ░C	5000	700 VDC	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Male Pin Receptacle	Bronze	Solder	NIM-CAMAC CD/N 549	Brass	Silver	1	Nickel
LEMO EPL.00.250.DTN	Push-Pull	Solder	Through Hole Right Angle	IP50	-55 °C	260 ░C	5000	700 VDC	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Receptacle	Bronze	Solder	NIM-CAMAC CD/N 549	Brass	Gold	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
