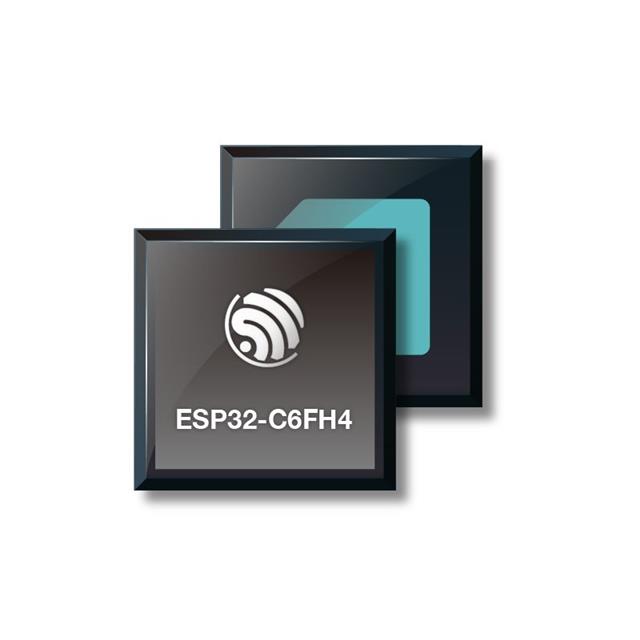

ESP32-C6FH4

Active

Espressif Systems

IC RF TXRX BLE 32QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESP32-C6FH4

Active

Espressif Systems

IC RF TXRX BLE 32QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESP32-C6FH4

Current - Receiving [Max]	82 mA
Current - Receiving [Min]	71 mA
Current - Transmitting [Max]	354 mA
Current - Transmitting [Min]	82 mA
Data Rate (Max)	250 kbps
Frequency [Max]	2.484 GHz
Frequency [Min]	2.412 GHz
GPIO	22
Memory Size	32 Gbit
Modulation	CCK, O-QPSK, 16-QAM, OFDM, DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-VFQFN Exposed Pad
Power - Output	21 dBm
Protocol	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	WiFi, Bluetooth
Sensitivity	-106 dBm
Serial Interfaces	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA
Supplier Device Package	32-QFN (5x5)
Type	TxRx Only
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

ESP32-C6 Series

Part	Data Rate (Max)	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]	Sensitivity	Frequency [Max]	Frequency [Min]	Power - Output	Package / Case	Protocol	Type	Mounting Type	GPIO	Current - Receiving [Min]	Current - Receiving [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Supplier Device Package	Modulation	Memory Size	Frequency	For Use With/Related Products	Supplied Contents	Antenna Type	Data Rate
Espressif Systems ESP32-C6FH4	250 kbps	105 °C	-40 °C	Bluetooth WiFi	82 mA	354 mA	-106 dBm	2.484 GHz	2.412 GHz	21 dBm	32-VFQFN Exposed Pad	Bluetooth v5.0 Thread Zigbee®	TxRx Only	Surface Mount	22	71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	32-QFN (5x5)	16-QAM CCK DSSS O-QPSK OFDM	32 Gbit
Espressif Systems ESP32-C6-DEVKITC-1-N8													802.11 b/g/n/ax (Wi-Fi WiFi WLAN) 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver											2.4 GHz	ESP32-C6-WROOM-1	Board(s)
Espressif Systems ESP32-C6	250 kbps	105 °C	-40 °C	Bluetooth WiFi	82 mA	354 mA	-106 dBm	2.484 GHz	2.412 GHz	21 dBm	40-VFQFN Exposed Pad	Bluetooth v5.0 Thread Zigbee®	TxRx Only	Surface Mount	30	71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	40-QFN (5x5)	16-QAM CCK DSSS O-QPSK OFDM
Espressif Systems ESP32-C6-DEVKITM-1-N4													Bluetooth® 5.x (BLE) Transceiver											2.4 GHz	ESP32-C6-MINI-1	Board(s)
Espressif Systems ESP32-C6-MINI-1-H4		105 °C	-40 °C	802.15.4 Bluetooth WiFi	82 mA	354 mA	-106 dBm			21 dBm	53-SMD Module	802.11ax Bluetooth v5.0 Zigbee®		Surface Mount		71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB		16-QAM CCK DSSS O-QPSK OFDM	32 Gbit	2.4 GHz			PCB Trace	150 Mbps
Espressif Systems ESP32-C6-MINI-1-N4		85 °C	-40 °C	802.15.4 Bluetooth WiFi	82 mA	354 mA	-106 dBm			21 dBm	53-SMD Module	802.11ax Bluetooth v5.0 Zigbee®		Surface Mount		71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB		16-QAM CCK DSSS O-QPSK OFDM	32 Gbit	2.4 GHz			PCB Trace	150 Mbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.06
	Digi-Reel®	1	$ 2.06
	Tape & Reel (TR)	5000	$ 2.06

Description

General part information

ESP32-C6 Series

IC RF TxRx Only Bluetooth, WiFi Bluetooth v5.0, Thread, Zigbee® 2.412GHz ~ 2.484GHz 32-VFQFN Exposed Pad
