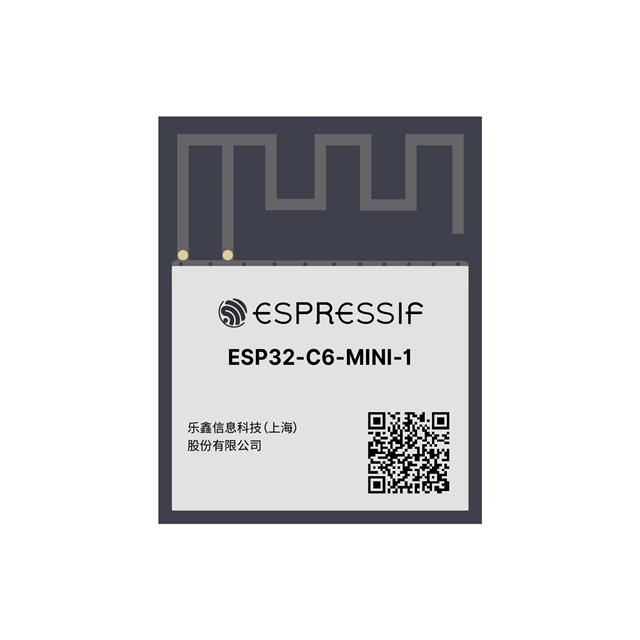

ESP32-C6-MINI-1-H4

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Deep-Dive with AI

Search across all available documentation for this part.

ESP32-C6-MINI-1-H4

Active

Espressif Systems

RF TXRX MOD BT WIFI PCB TH SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESP32-C6-MINI-1-H4

Antenna Type	PCB Trace
Current - Receiving [Max]	82 mA
Current - Receiving [Min]	71 mA
Current - Transmitting [Max]	354 mA
Current - Transmitting [Min]	82 mA
Data Rate	150 Mbps
Frequency	2.4 GHz
Memory Size	32 Gbit
Modulation	CCK, O-QPSK, 16-QAM, OFDM, DSSS
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	53-SMD Module
Power - Output	21 dBm
Protocol	Bluetooth v5.0, 802.11ax, Zigbee®
RF Family/Standard	WiFi, Bluetooth, 802.15.4
Sensitivity	-106 dBm
Serial Interfaces	SPI, PCM, UART, USB, I2C, PWM, GPIO, SDIO, JTAG, I2S, IrDA
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

ESP32-C6 Series

Part	Data Rate (Max)	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]	Sensitivity	Frequency [Max]	Frequency [Min]	Power - Output	Package / Case	Protocol	Type	Mounting Type	GPIO	Current - Receiving [Min]	Current - Receiving [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Supplier Device Package	Modulation	Memory Size	Frequency	For Use With/Related Products	Supplied Contents	Antenna Type	Data Rate
Espressif Systems ESP32-C6FH4	250 kbps	105 °C	-40 °C	Bluetooth WiFi	82 mA	354 mA	-106 dBm	2.484 GHz	2.412 GHz	21 dBm	32-VFQFN Exposed Pad	Bluetooth v5.0 Thread Zigbee®	TxRx Only	Surface Mount	22	71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	32-QFN (5x5)	16-QAM CCK DSSS O-QPSK OFDM	32 Gbit
Espressif Systems ESP32-C6-DEVKITC-1-N8													802.11 b/g/n/ax (Wi-Fi WiFi WLAN) 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver											2.4 GHz	ESP32-C6-WROOM-1	Board(s)
Espressif Systems ESP32-C6	250 kbps	105 °C	-40 °C	Bluetooth WiFi	82 mA	354 mA	-106 dBm	2.484 GHz	2.412 GHz	21 dBm	40-VFQFN Exposed Pad	Bluetooth v5.0 Thread Zigbee®	TxRx Only	Surface Mount	30	71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	40-QFN (5x5)	16-QAM CCK DSSS O-QPSK OFDM
Espressif Systems ESP32-C6-DEVKITM-1-N4													Bluetooth® 5.x (BLE) Transceiver											2.4 GHz	ESP32-C6-MINI-1	Board(s)
Espressif Systems ESP32-C6-MINI-1-H4		105 °C	-40 °C	802.15.4 Bluetooth WiFi	82 mA	354 mA	-106 dBm			21 dBm	53-SMD Module	802.11ax Bluetooth v5.0 Zigbee®		Surface Mount		71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB		16-QAM CCK DSSS O-QPSK OFDM	32 Gbit	2.4 GHz			PCB Trace	150 Mbps
Espressif Systems ESP32-C6-MINI-1-N4		85 °C	-40 °C	802.15.4 Bluetooth WiFi	82 mA	354 mA	-106 dBm			21 dBm	53-SMD Module	802.11ax Bluetooth v5.0 Zigbee®		Surface Mount		71 mA	82 mA	3.6 V	3 V	GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB		16-QAM CCK DSSS O-QPSK OFDM	32 Gbit	2.4 GHz			PCB Trace	150 Mbps
