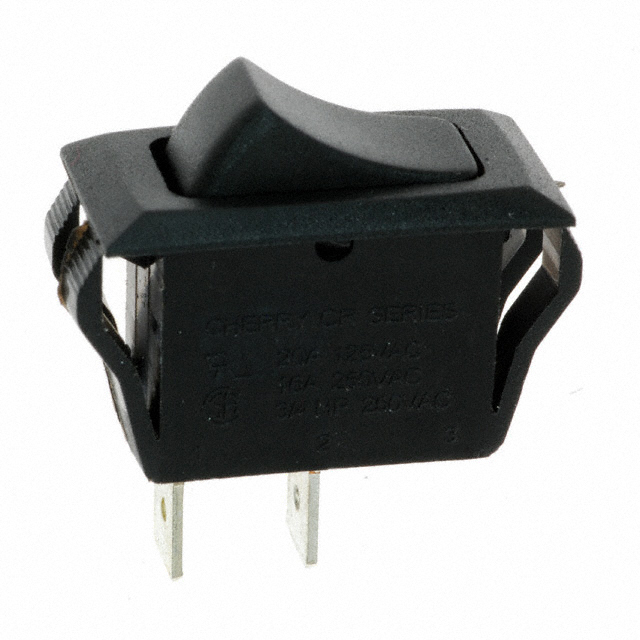

CRE22F2BBBNE

Active

ZF Electronics

SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Actuator Type	Mechanical Life	Switch Function	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color
ZF Electronics CRE22F2BBGLE	6000 Cycles	Concave (Curved) - Illuminated	100000 Cycles	On-Off	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	No Marking	125 V	Green	20 A	SPST	125 VAC	28.5 mm	12.1 mm	Green Neon
ZF Electronics CRE22F2BBRLE	6000 Cycles	Concave (Curved) - Illuminated	100000 Cycles	On-Off	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	No Marking	125 V	Red	20 A	SPST	125 VAC	28.5 mm	12.1 mm	Neon Red
ZF Electronics CRE22F2BBBNE	6000 Cycles	Concave (Curved)	100000 Cycles	On-Off	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C	No Marking	125 V	Black	20 A	SPST		28.5 mm	12.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
