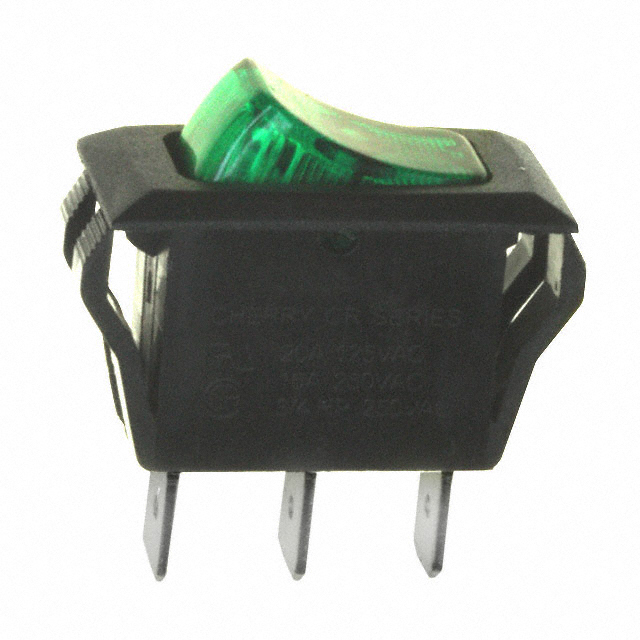

CRE22F2BBGLE
ActiveZF Electronics
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
Deep-Dive with AI
Search across all available documentation for this part.
CRE22F2BBGLE
ActiveZF Electronics
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CRE22F2BBGLE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Green, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 12.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.32 | |
| 10 | $ 2.08 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.71 | |||
| 500 | $ 1.59 | |||
| 1000 | $ 1.51 | |||
Description
General part information
CRE22F2B Series
Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
