XC5A-3282-1A
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 32POS PCB RA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
XC5A-3282-1A
ActiveOmron Electronics Inc-EMC Div
CONN DIN PLUG 32POS PCB RA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC5A-3282-1A |
|---|---|
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | B |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.90 | |
| 10 | $ 3.54 | |||
| 25 | $ 3.35 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.12 | |||
| 250 | $ 2.73 | |||
| 450 | $ 2.65 | |||
| 950 | $ 2.26 | |||
| 2400 | $ 2.10 | |||
Description
General part information
XC5A Series

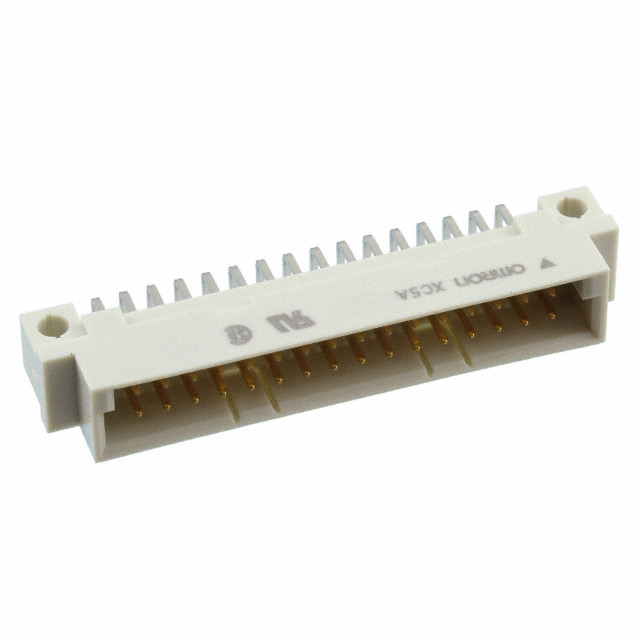

32 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
