XC5A-6422

Active

Omron Electronics Inc-EMC Div

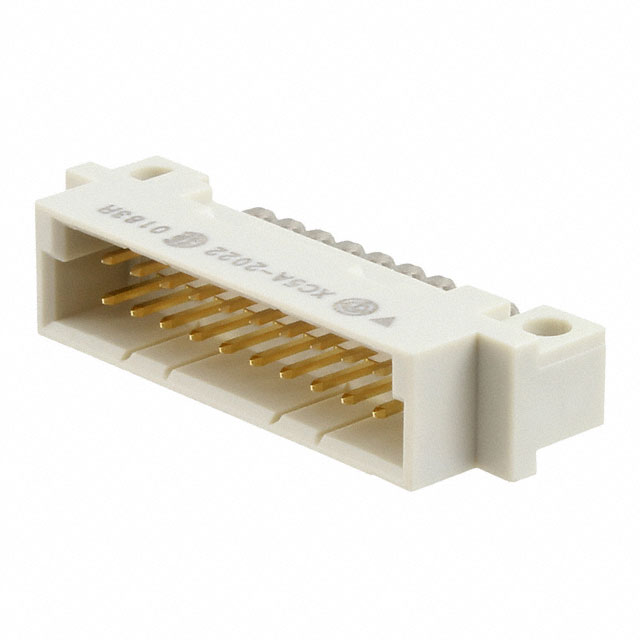

CONN DIN PLUG 64POS PCB RA GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XC5A-6422

Active

Omron Electronics Inc-EMC Div

CONN DIN PLUG 64POS PCB RA GOLD

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC5A-6422

Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Current Rating (Amps)	2 A
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B
Termination	Solder

XC5A Series

Part	Current Rating (Amps)	Pitch [x]	Pitch [x]	Style	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Connector Type	Number of Rows	Mounting Type	Number of Positions	Termination	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Omron Electronics Inc-EMC Div XC5A-3222-A	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle
Omron Electronics Inc-EMC Div XC5A-5082-1A	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	50
Omron Electronics Inc-EMC Div XC5A-2082-1	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	20	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-6482-1	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	64	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-6422	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	64	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-3082-1	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	30	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-2042	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	20	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-2022	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	20	Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-3282-1A	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle		Solder	All	16 µin	0.41 µm	Gold
Omron Electronics Inc-EMC Div XC5A-2022-1A	2 A	2.54 mm	0.1 in	B	UL94 V-0	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	2	Through Hole Right Angle	20
