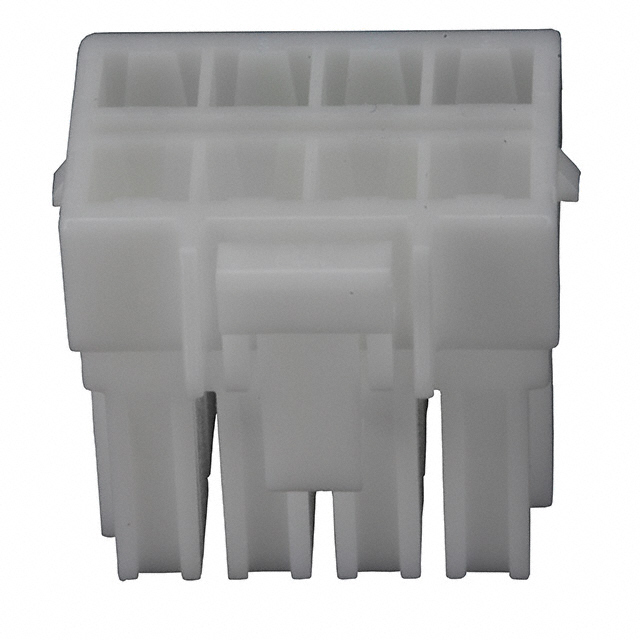

DF33-8DS-3.3C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 8POS 3.30MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF33-8DS-3.3C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 8POS 3.30MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF33-8DS-3.3C

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.13 in
Pitch [x]	3.3 mm
Row Spacing	0.228 in
Row Spacing	5.8 mm

DF33 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Insulation Material	Shrouding	Mounting Type	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Features	Style	Contact Finish - Post	Connector Type	Number of Rows	Contact Type	Contact Material	Termination	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Voltage Rating	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Note	Contact Termination	Row Spacing	Row Spacing	Color	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF33-4RS-3.3	4	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-12RDS-3.3	12	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-6P-3.3DSA
Hirose Electric USA, Inc. DF33-5P-3.3DSA(24)				Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-6P-3.3DSA(24)	6			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-3P-3.3DSA(24)				Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-10DP-3.3DSA(24)	10			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in		Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	2	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in	5.8 mm	0.228 in
Hirose Electric USA, Inc. DF33-2RS-3.3	2	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-8DS-3.3C	8			Nylon Polyamide (PA)		Free Hanging (In-Line)										Receptacle	2	Female Socket				-35 °C	85 °C				Latch Lock						Contacts Not Included	Crimp	0.228 in	5.8 mm	Natural	0.13 in	3.3 mm
Hirose Electric USA, Inc. DF33-10RDS-3.3	10	DF33 Series	Retainer Clip

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.26

Description

General part information

DF33 Series

8 Rectangular Connectors - Housings Receptacle Natural 0.130" (3.30mm)
