DF33-10DP-3.3DSA(24)

Obsolete

Hirose Electric USA, Inc.

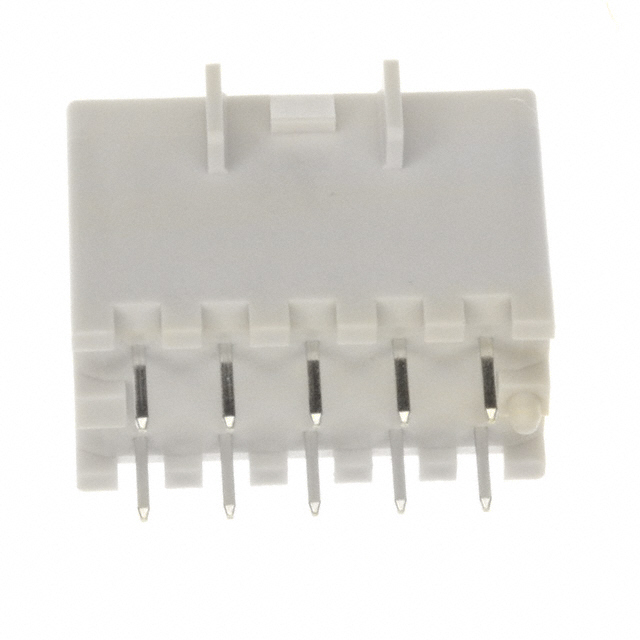

CONN HEADER VERT 10POS 3.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF33-10DP-3.3DSA(24)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 10POS 3.3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF33-10DP-3.3DSA(24)

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	11.5 mm
Insulation Height	0.453 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	17.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	3.3 mm
Pitch - Mating	0.13 in
Row Spacing - Mating [x]	5.8 mm
Row Spacing - Mating [x]	0.228 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	500 V

DF33 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Insulation Material	Shrouding	Mounting Type	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Features	Style	Contact Finish - Post	Connector Type	Number of Rows	Contact Type	Contact Material	Termination	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Voltage Rating	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Note	Contact Termination	Row Spacing	Row Spacing	Color	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF33-4RS-3.3	4	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-12RDS-3.3	12	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-6P-3.3DSA
Hirose Electric USA, Inc. DF33-5P-3.3DSA(24)				Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-6P-3.3DSA(24)	6			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-3P-3.3DSA(24)				Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in	5 A	Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	1	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in
Hirose Electric USA, Inc. DF33-10DP-3.3DSA(24)	10			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Through Hole	17.6 mm	3.3 mm	0.13 in		Square	UL94 V-0	Board Guide	Board to Cable/Wire	Tin	Header	2	Male Pin	Copper Alloy	Solder	Natural	-35 °C	85 °C	0.118 in	3 mm	500 V	Locking Ramp	All	11.5 mm	0.453 in	5.8 mm	0.228 in
Hirose Electric USA, Inc. DF33-2RS-3.3	2	DF33 Series	Retainer Clip
Hirose Electric USA, Inc. DF33-8DS-3.3C	8			Nylon Polyamide (PA)		Free Hanging (In-Line)										Receptacle	2	Female Socket				-35 °C	85 °C				Latch Lock						Contacts Not Included	Crimp	0.228 in	5.8 mm	Natural	0.13 in	3.3 mm
Hirose Electric USA, Inc. DF33-10RDS-3.3	10	DF33 Series	Retainer Clip
