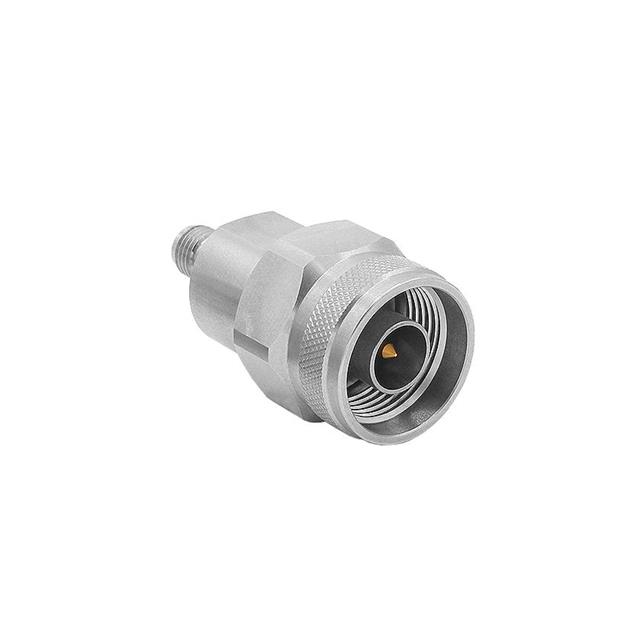

RFAA350JNP

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 3.5MM COAXIAL, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RFAA350JNP

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 3.5MM COAXIAL, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA350JNP

Adapter Series	3.5 mm
Adapter Series	N
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	3.5mm Jack, Female Socket
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	33 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

RFAA350 Series

Part	Mounting Type	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Style	Center Gender	Body Material	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Impedance	Conversion Type	Dielectric Material	Adapter Series [Min]	Adapter Series [Max]	Convert To (Adapter End)	Adapter Series	Adapter Series
BULGIN LIMITED RFAA350P350P	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Male to Male	Stainless Steel	Plug to Plug	85 °C	-40 °C	3.5mm Plug Male Pin	50 Ohms	Same Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	3.5 mm	3.5 mm
BULGIN LIMITED RFAA350JNP	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight		Stainless Steel	Plug to Jack	85 °C	-40 °C	N Plug Male Pin	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)			3.5mm Jack Female Socket	3.5 mm	N
BULGIN LIMITED RFAA350JNJ	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Female to Female	Stainless Steel	Jack to Jack	85 °C	-40 °C	Female Socket N Jack	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)			3.5mm Jack Female Socket	3.5 mm	N
BULGIN LIMITED RFAA350J350J	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Female to Female	Stainless Steel	Jack to Jack	85 °C	-40 °C	3.5mm Jack Female Socket	50 Ohms	Same Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	3.5 mm	3.5 mm	3.5mm Jack Female Socket
BULGIN LIMITED RFAA350PNJ	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight		Stainless Steel	Plug to Jack	85 °C	-40 °C	Female Socket N Jack	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)				3.5 mm	N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 109.27
Newark	Each	1	$ 171.09

Description

General part information

RFAA350 Series

Adapter Coaxial Connector N Plug, Male Pin To 3.5mm Jack, Female Socket 50 Ohms
