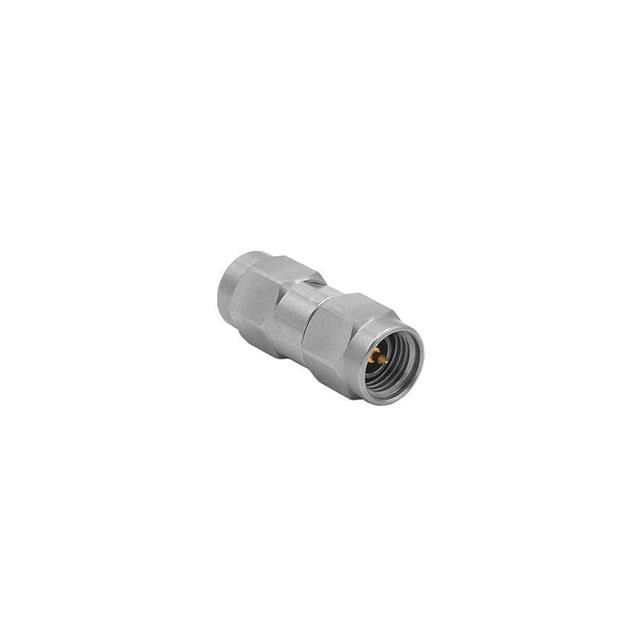

RFAA350P350P

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 3.5MM COAXIAL, PLUG, 3.5MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

RFAA350P350P

Active

BULGIN LIMITED

RF / COAXIAL ADAPTER, 3.5MM COAXIAL, PLUG, 3.5MM COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RFAA350P350P

Adapter Series [Max]	3.5 mm
Adapter Series [Min]	3.5 mm
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	3.5mm Plug, Male Pin
Dielectric Material	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	33 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

RFAA350 Series

Part	Mounting Type	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Style	Center Gender	Body Material	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Impedance	Conversion Type	Dielectric Material	Adapter Series [Min]	Adapter Series [Max]	Convert To (Adapter End)	Adapter Series	Adapter Series
BULGIN LIMITED RFAA350P350P	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Male to Male	Stainless Steel	Plug to Plug	85 °C	-40 °C	3.5mm Plug Male Pin	50 Ohms	Same Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	3.5 mm	3.5 mm
BULGIN LIMITED RFAA350JNP	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight		Stainless Steel	Plug to Jack	85 °C	-40 °C	N Plug Male Pin	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)			3.5mm Jack Female Socket	3.5 mm	N
BULGIN LIMITED RFAA350JNJ	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Female to Female	Stainless Steel	Jack to Jack	85 °C	-40 °C	Female Socket N Jack	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)			3.5mm Jack Female Socket	3.5 mm	N
BULGIN LIMITED RFAA350J350J	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight	Female to Female	Stainless Steel	Jack to Jack	85 °C	-40 °C	3.5mm Jack Female Socket	50 Ohms	Same Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)	3.5 mm	3.5 mm	3.5mm Jack Female Socket
BULGIN LIMITED RFAA350PNJ	Free Hanging (In-Line)	Beryllium Copper	33 GHz	500	Straight		Stainless Steel	Plug to Jack	85 °C	-40 °C	Female Socket N Jack	50 Ohms	Between Series	Polyetherimide (PEI) Polytetrafluoroethylene (PTFE)				3.5 mm	N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 141.36
Newark	Each	1	$ 255.58

Description

General part information

RFAA350 Series

Adapter Coaxial Connector 3.5mm Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms
