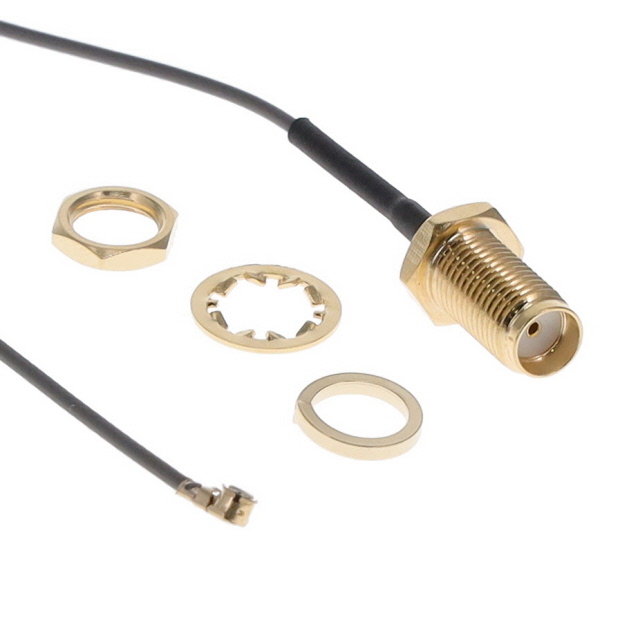

DH-20G50011

Active

Cvilux USA

CBL ASY IPEX MHF1-SMA P-J 5.906"

Search across all available documentation for this part.

Active

Cvilux USA

CBL ASY IPEX MHF1-SMA P-J 5.906"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	2nd Connector	Length [x]	Length [x]	Color	Style	1st Contact Gender	2nd Contact Gender	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type
Cvilux USA DH-20G50016	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Brown	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50013	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50014	IPEX MHF1 Plug Right Angle	SMA Jack	150 mm	5.906 "	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50010	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50009	I-PEX MHF1 Plug Right Angle	SMA Jack	50 mm	1.969 in	Gray	I-PEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50011	IPEX MHF1 Plug Right Angle	SMA Jack	150 mm	5.906 "	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50012	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	SMA Jack	50 mm	1.969 in	Gray	I-PEX MHF1 to SMA IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial IPEX MHF1 to SMA 5.906" (150.00mm)
