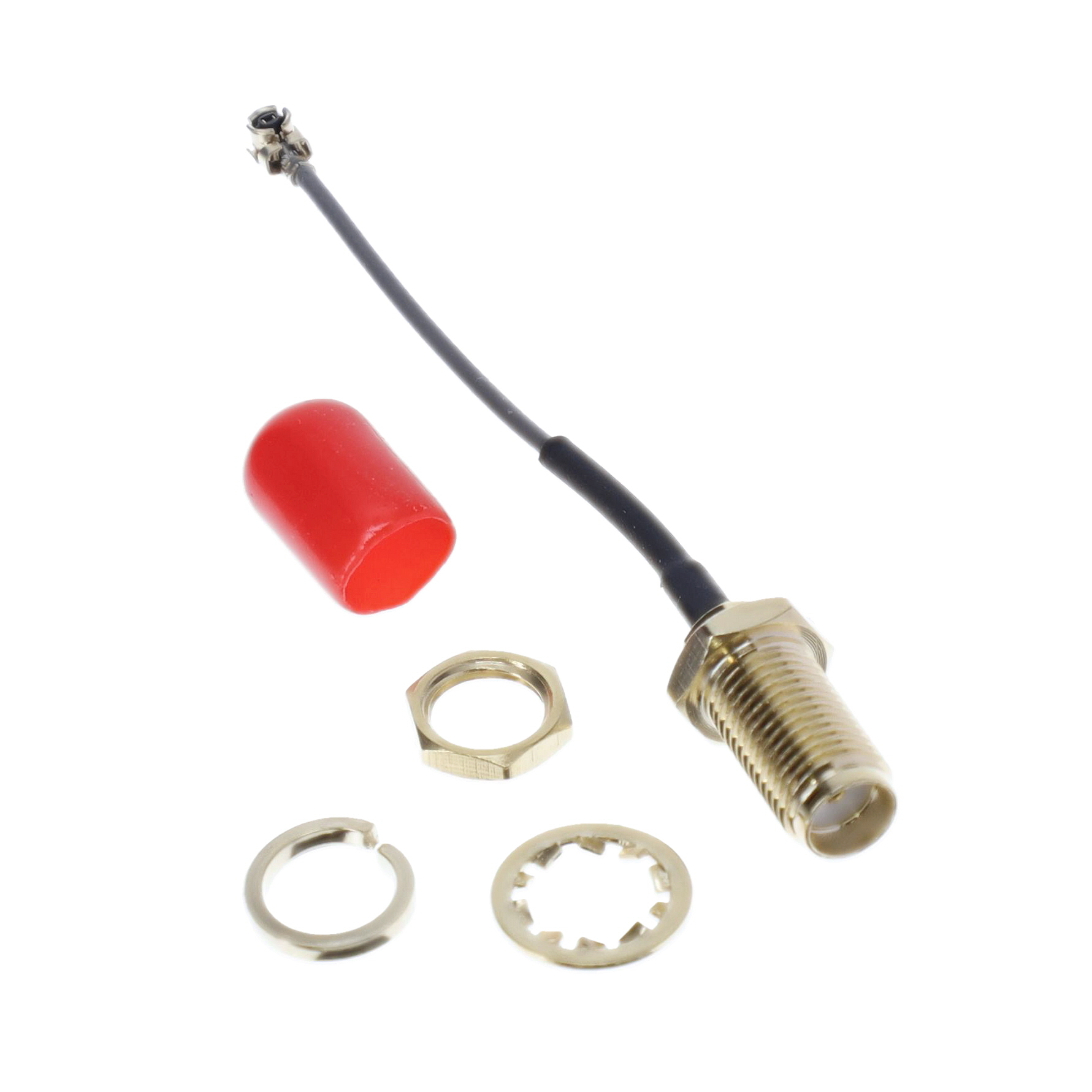

DH-20G50009

Active

Cvilux USA

COAX CBL MHF1 TO SMA 1.9"

Search across all available documentation for this part.

Active

Cvilux USA

COAX CBL MHF1 TO SMA 1.9"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	2nd Connector	Length [x]	Length [x]	Color	Style	1st Contact Gender	2nd Contact Gender	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type
Cvilux USA DH-20G50016	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Brown	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50013	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50014	IPEX MHF1 Plug Right Angle	SMA Jack	150 mm	5.906 "	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50010	IPEX MHF1 Plug Right Angle	SMA Jack	0.1 m	3.937 in	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50009	I-PEX MHF1 Plug Right Angle	SMA Jack	50 mm	1.969 in	Gray	I-PEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50011	IPEX MHF1 Plug Right Angle	SMA Jack	150 mm	5.906 "	Gray	IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)
Cvilux USA DH-20G50012	I-PEX MHF1 Plug Right Angle IPEX MHF1 Plug Right Angle	SMA Jack	50 mm	1.969 in	Gray	I-PEX MHF1 to SMA IPEX MHF1 to SMA	Female	Female	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial I-PEX MHF1 to SMA 1.969" (50.00mm)

Technical documentation and resources
