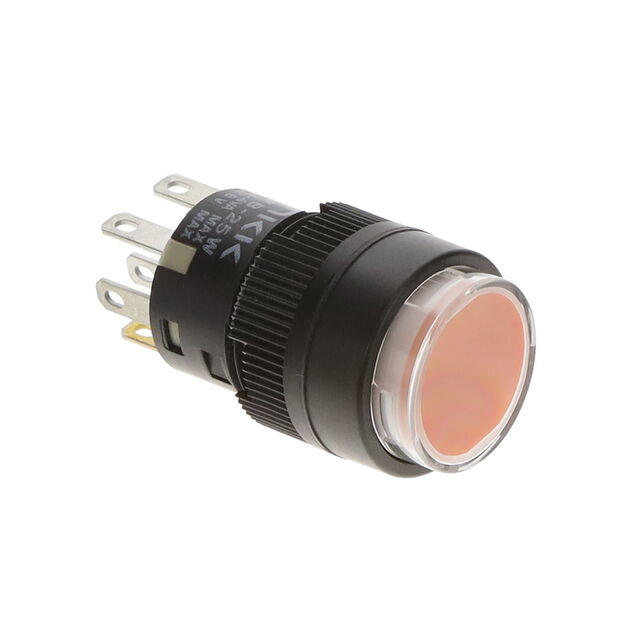

YB25WCKG01-5C-JC

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB25WCKG01-5C-JC

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25WCKG01-5C-JC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.9 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB25WC Series

Part	Illumination Type, Color	Actuator Marking	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Color - Actuator/Cap	Current Rating (Amps)	Mechanical Life	Voltage Rating - AC	Switch Function	Electrical Life	Features	Circuit	Illumination Voltage (Nominal)	Type	Panel Cutout Dimensions [diameter]
NKK Switches YB25WCKG01-1CF24-JF	Green/Red LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	24 V	Illuminated Standard	16 mm
NKK Switches YB25WCKW01		No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Plunger for Cap	70 °C	-25 °C	IP65 - Dust Tight Water Resistant		3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKW01-5F05-JF	Green LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	5 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKW01-5C-JC	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear (Red Filter/Diffuser)	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	1.9 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-5C-JC	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear (Red Filter/Diffuser)	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	1.9 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKW01-CB		No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Red	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKW01-5D-JD	Amber LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	2 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-CB		No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Red	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKG01-1C05-JB	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	5 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-GB		No Marking		Solder Lug		28 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Blue	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
