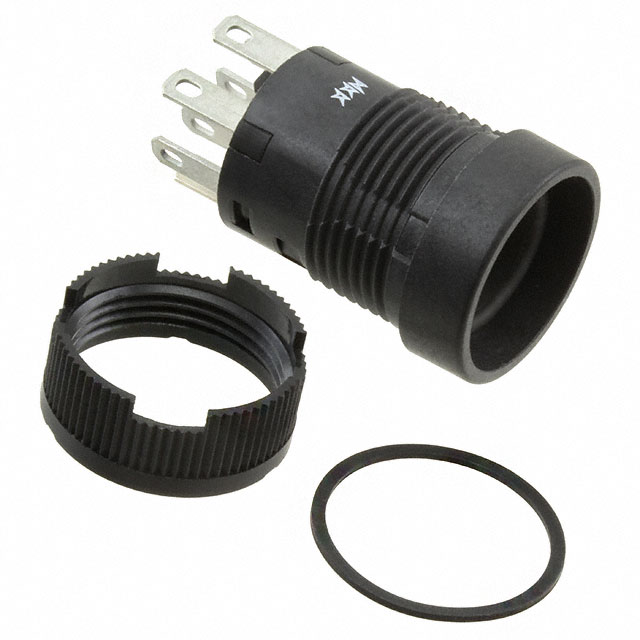

YB25WCKW01

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB25WCKW01

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25WCKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25WC Series

Part	Illumination Type, Color	Actuator Marking	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Color - Actuator/Cap	Current Rating (Amps)	Mechanical Life	Voltage Rating - AC	Switch Function	Electrical Life	Features	Circuit	Illumination Voltage (Nominal)	Type	Panel Cutout Dimensions [diameter]
NKK Switches YB25WCKG01-1CF24-JF	Green/Red LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	24 V	Illuminated Standard	16 mm
NKK Switches YB25WCKW01		No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Plunger for Cap	70 °C	-25 °C	IP65 - Dust Tight Water Resistant		3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKW01-5F05-JF	Green LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	5 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKW01-5C-JC	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear (Red Filter/Diffuser)	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	1.9 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-5C-JC	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear (Red Filter/Diffuser)	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	1.9 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKW01-CB		No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Red	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKW01-5D-JD	Amber LED	No Marking	0.11 in	Quick Connect Solder	2.8 mm	30 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	3 A	1000000 Cycles	125 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	2 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-CB		No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Red	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
NKK Switches YB25WCKG01-1C05-JB	LED Red	No Marking	0.11 in	Quick Connect Solder	2.8 mm	28 V	Panel Mount Front	Button Round	50 °C	-25 °C	IP65 - Dust Tight Water Resistant	Clear	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT	5 VDC	Illuminated Standard	16 mm
NKK Switches YB25WCKG01-GB		No Marking		Solder Lug		28 V	Panel Mount Front	Button Round	70 °C	-25 °C	IP65 - Dust Tight Water Resistant	Blue	0.4 VA	1000000 Cycles	28 V	On-Mom	100000 Cycles	Voltage Reduction Lighting	DPDT		Standard	16 mm
