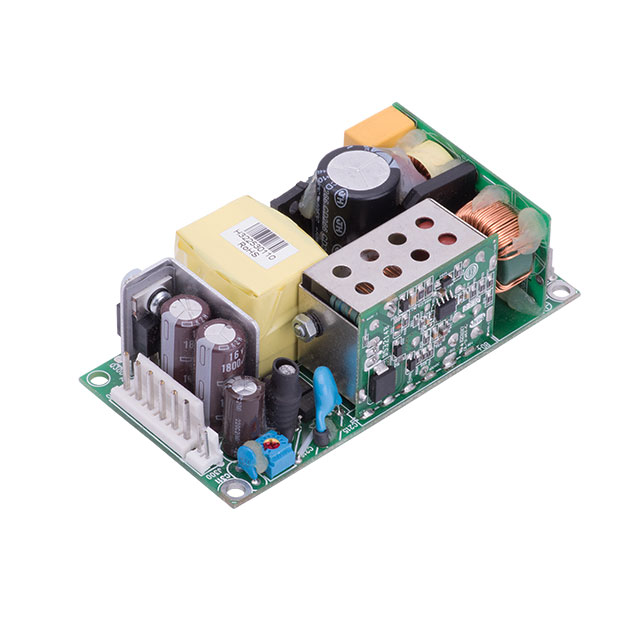

CINT1150A5606K01

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 56V 1.79A 150W 11-PIN

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 56V 1.79A 150W 11-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Efficiency	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Power (Watts)	Type	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation
SL POWER / Advanced Energy CINT1150A2406K01	1	88 %	CE	90 VAC	264 VAC	24 V	4.17 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	150 W	100 W	Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	4000 V
SL POWER / Advanced Energy CINT1150A5606K01	1	88 %	CE	90 VAC	264 VAC	56 V	1.79 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	150 W	100 W	Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	4000 V
SL POWER / Advanced Energy CINT1150A1206K01	1	88 %	CE	90 VAC	264 VAC	12 V	8.33 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	150 W	100 W	Open Frame	Chassis Mount	ITE (Commercial)	-10 °C	70 °C	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 56V 90 ~ 264 VAC Input
