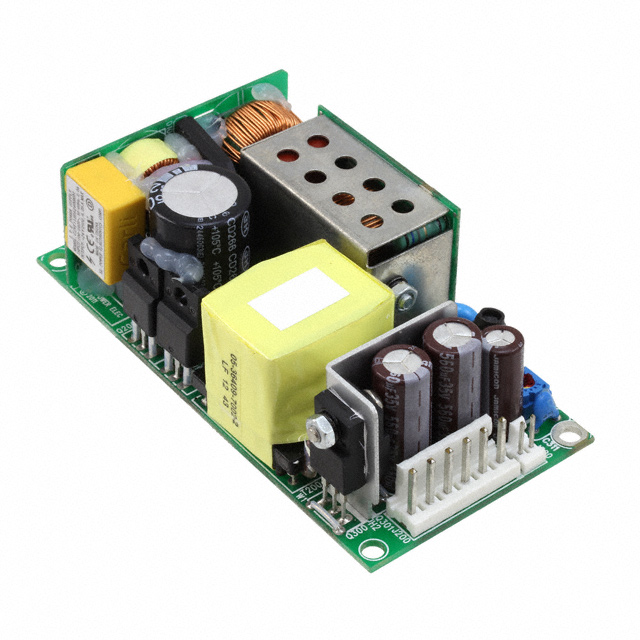

CINT1150A2406K01
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
Search across all available documentation for this part.
CINT1150A2406K01
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 24V 100W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CINT1150A2406K01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 4.17 A |
| Efficiency | 88 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 W |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CINT1150 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
