19413160233
ActiveHARTING Technology Group

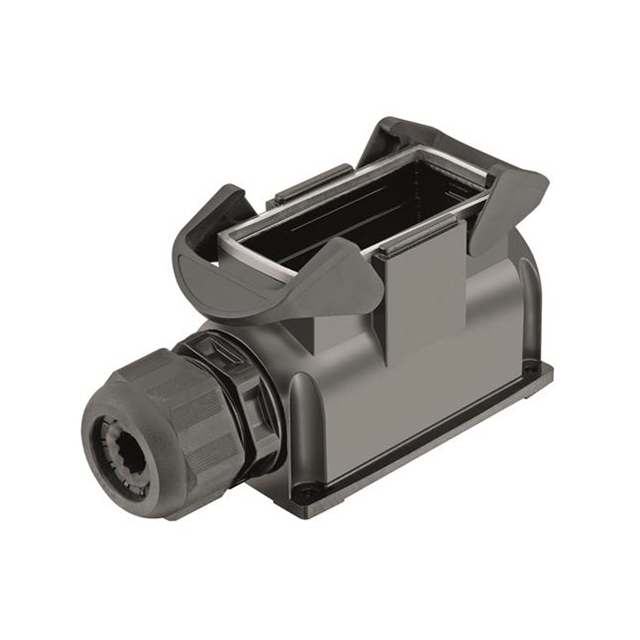

HAN-ECO MODULAR 16B SURFACE MOUNT HOUSING 1XM40 W/ GLAND - OUTDOOR (HOLDS CABLE 16-28MM)
Deep-Dive with AI
Search across all available documentation for this part.
19413160233
ActiveHARTING Technology Group
HAN-ECO MODULAR 16B SURFACE MOUNT HOUSING 1XM40 W/ GLAND - OUTDOOR (HOLDS CABLE 16-28MM)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19413160233 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Size / Dimension [x] | 4.685 in |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [y] | 2.677 " |
| Size / Dimension [z] | 78.2 mm |
| Size / Dimension [z] | 3.079 " |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19413160 Series
Base - Box Mount Connector Side Entry M40 16B IP65 - Dust Tight, Water Resistant
