19413160723

Active

HARTING Technology Group

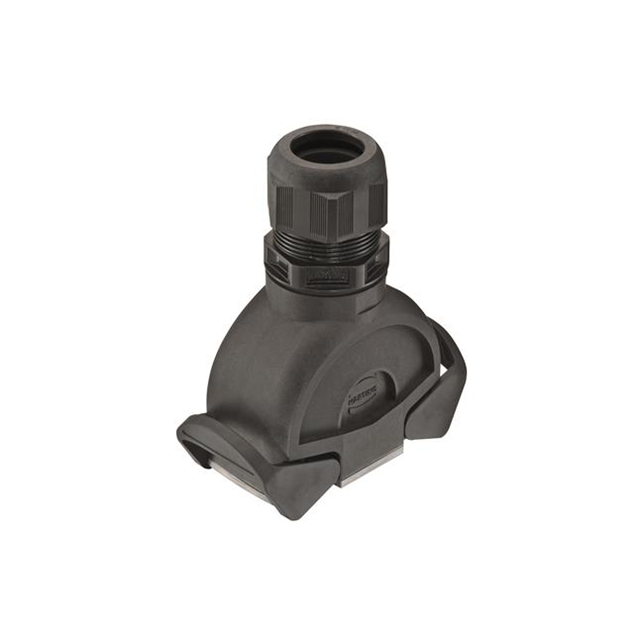

HAN-ECO MODULAR 16B COUPLER HOOD M40 W/ GLAND - OUTDOOR (HOLDS CABLE 16-28MM)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 16B COUPLER HOOD M40 W/ GLAND - OUTDOOR (HOLDS CABLE 16-28MM)

Technical Specifications

Parameters and characteristics for this part

Specification	19413160723

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Style	Bottom Entry

Part	Housing Material	Housing Color	Lock Location	Ingress Protection	Features	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Size	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
HARTING Technology Group 19413160723	Polyamide (PA) Nylon Glass Filled	Black	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	Cable to Cable	Bottom Entry	125 °C	-40 °C	Hood - Coupling	16 B
HARTING Technology Group 19413160233	Polyamide (PA) Nylon Glass Filled	Black	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant		Side Entry	125 °C	-40 °C	Base - Box Mount	16 B	68 mm	78.2 mm	3.079 "	4.685 in	119 mm	2.677 "
HARTING Technology Group 19413160273	Polyamide (PA) Nylon Glass Filled	Black	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Feed Through	Side Entry Dual	125 °C	-40 °C	Base - Box Mount	16 B	68 mm	78.2 mm	3.079 "	4.685 in	119 mm	2.677 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M40 16B IP65 - Dust Tight, Water Resistant
