9AS3A24

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Contact Form	Load - Max Switching	Load - Max Switching	Must Operate Voltage	Approval Agency	Release Time	Coil Current	Coil Voltage	Contact Rating (Current)	Seal Rating	Mounting Type	Switching Voltage	Relay Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Operate Time	Must Release Voltage
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A12	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA	10.2 VAC	UL	10 ms	480 mA	12 VAC/DC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	25 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	2.4 VAC/DC
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A120	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA	102 VAC	UL	10 ms	48 mA	120 VAC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	2500 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	24 VAC
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A24	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA		UL	10 ms	24 mA	24 VAC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	100 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	4.8 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 19.17

General part information

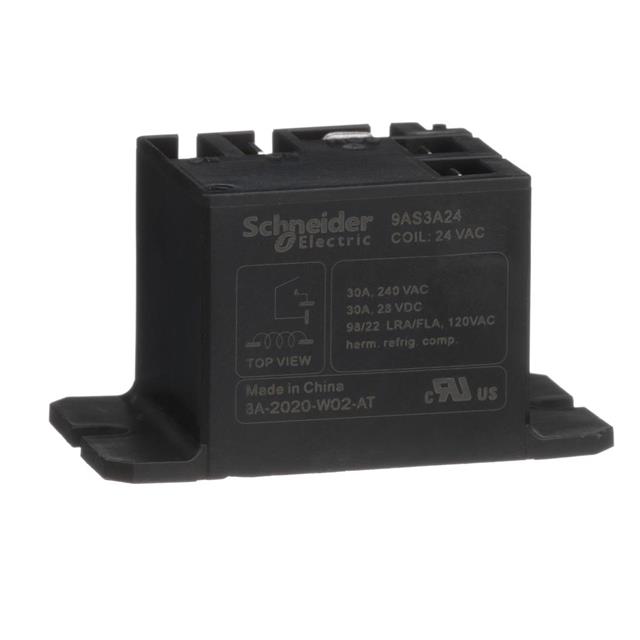

General Purpose Relay SPST-NO (1 Form A) 24VAC Coil Chassis Mount
