9AS3A120

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

ELECTROMECHNICAL POWER RELAYS, S

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Contact Form	Load - Max Switching	Load - Max Switching	Must Operate Voltage	Approval Agency	Release Time	Coil Current	Coil Voltage	Contact Rating (Current)	Seal Rating	Mounting Type	Switching Voltage	Relay Type	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Operate Time	Must Release Voltage
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A12	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA	10.2 VAC	UL	10 ms	480 mA	12 VAC/DC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	25 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	2.4 VAC/DC
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A120	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA	102 VAC	UL	10 ms	48 mA	120 VAC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	2500 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	24 VAC
SQUARE D BY SCHNEIDER ELECTRIC 9AS3A24	Non Latching	SPST-NO (1 Form A)	840 W	8310 VA		UL	10 ms	24 mA	24 VAC	30 A	Sealed - Fully	Chassis Mount	28 VDC 277 VAC	General Purpose	100 Ohms	40 °C	-40 °C	Quick Connect - 0.187"/0.250"	Silver Alloy	20 ms	4.8 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

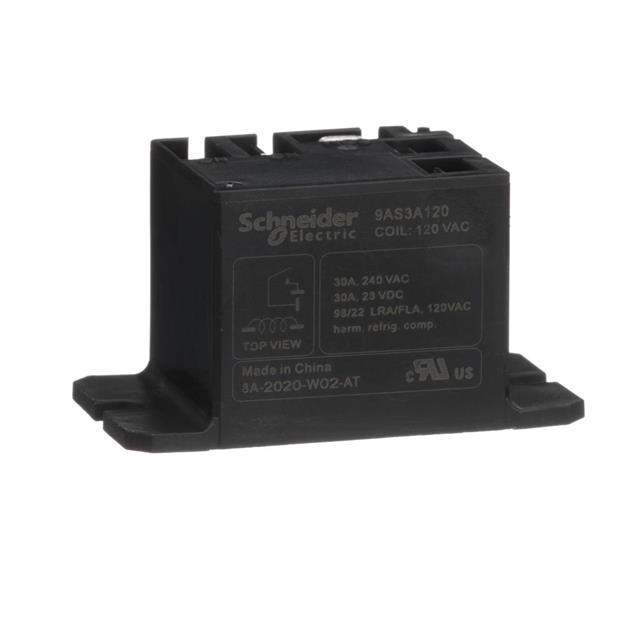

General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount
