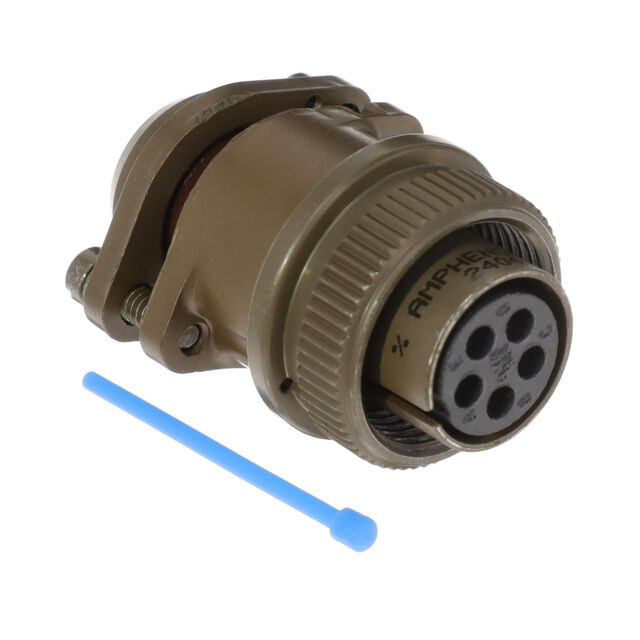

MS3106R14S-5S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106R14S-5S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106R14S-5S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Cable Clamp
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Shielding	Unshielded

MS3106R14 Series

Part	Color	Insert Material	Ingress Protection	Shell Finish	Voltage Rating	Features	Current Rating (Amps)	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Primary Material	Connector Type	Grade	Contact Finish - Mating	Applications	Qualification	Orientation	Mounting Type	Shell Material	Shielding	Number of Positions
Amphenol Industrial Operations MS3106R14-3S
Amphenol Industrial Operations MS3106R14-3P
Amphenol Industrial Operations MS3106R14S-5P	Olive Drab	Neoprene	Environment Resistant	Olive Drab Chromate over Cadmium	200 VAC 250 VDC	Backshell Coupling Nut	13 A	14S-5	-55 °C	125 °C	Copper Alloy	Metal	Male Pins Plug	Military	Silver	Marine Military	MIL-DTL-5015	N	Free Hanging (In-Line)	Aluminum Alloy	Unshielded
Amphenol Industrial Operations MS3106R14S-10S
Amphenol Industrial Operations MS3106R14S-9P
Amphenol Industrial Operations MS3106R14S-1S
Amphenol Industrial Operations MS3106R14S-2P	Olive Drab	Neoprene	Environment Resistant	Olive Drab Chromate over Cadmium	200 VAC 250 VDC		13 A	14S-2	-55 °C	125 °C	Copper Alloy	Metal	Male Pins Plug	Military	Silver	Marine Military	MIL-DTL-5015	N	Free Hanging (In-Line)	Aluminum Alloy	Unshielded	4
Amphenol Industrial Operations MS3106R14S-5S	Olive Drab	Neoprene	Environment Resistant	Olive Drab Chromate over Cadmium		Cable Clamp Coupling Nut		14S-5	-55 °C	125 °C	Copper Alloy	Metal	Female Sockets Plug	Military	Silver	Marine Military	MIL-DTL-5015	N	Free Hanging (In-Line)	Aluminum Alloy	Unshielded
Amphenol Industrial Operations MS3106R14S-2S	Olive Drab	Neoprene	Environment Resistant	Olive Drab Chromate over Cadmium		Cable Clamp Coupling Nut		14S-2	-55 °C	125 °C	Copper Alloy	Metal	Female Sockets Plug	Military	Silver	Marine Military	MIL-DTL-5015	N	Free Hanging (In-Line)	Aluminum Alloy	Unshielded	4
Amphenol Industrial Operations MS3106R14S-12P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.28
		10	$ 87.43
		25	$ 84.07
		50	$ 81.27
		100	$ 76.78

Description

General part information

MS3106R14 Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
