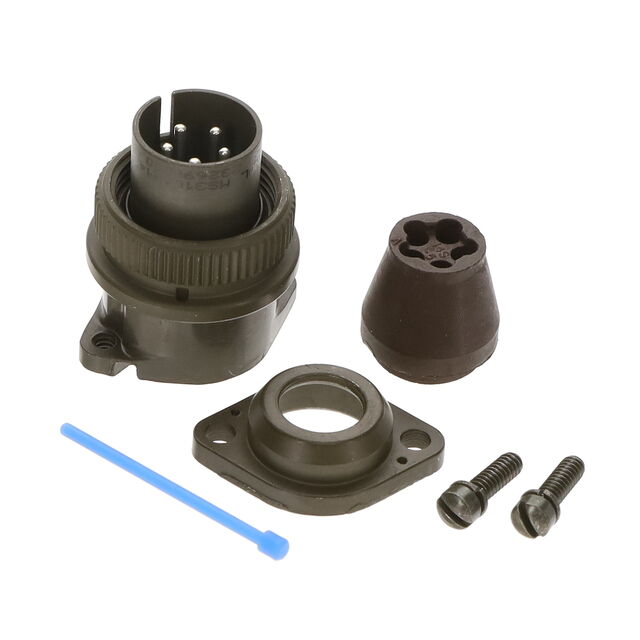

MS3106R14S-5P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106R14S-5P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106R14S-5P |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Coupling Nut, Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-5 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC |
MS3106R14 Series
| Part | Color | Insert Material | Ingress Protection | Shell Finish | Voltage Rating | Features | Current Rating (Amps) | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Primary Material | Connector Type | Grade | Contact Finish - Mating | Applications | Qualification | Orientation | Mounting Type | Shell Material | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | ||||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||||
Amphenol Industrial Operations | Olive Drab | Neoprene | Environment Resistant | Olive Drab Chromate over Cadmium | 200 VAC 250 VDC | Backshell Coupling Nut | 13 A | 14S-5 | -55 °C | 125 °C | Copper Alloy | Metal | Male Pins Plug | Military | Silver | Marine Military | MIL-DTL-5015 | N | Free Hanging (In-Line) | Aluminum Alloy | Unshielded | |
Amphenol Industrial Operations | ||||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||||
Amphenol Industrial Operations | Olive Drab | Neoprene | Environment Resistant | Olive Drab Chromate over Cadmium | 200 VAC 250 VDC | 13 A | 14S-2 | -55 °C | 125 °C | Copper Alloy | Metal | Male Pins Plug | Military | Silver | Marine Military | MIL-DTL-5015 | N | Free Hanging (In-Line) | Aluminum Alloy | Unshielded | 4 | |
Amphenol Industrial Operations | Olive Drab | Neoprene | Environment Resistant | Olive Drab Chromate over Cadmium | Cable Clamp Coupling Nut | 14S-5 | -55 °C | 125 °C | Copper Alloy | Metal | Female Sockets Plug | Military | Silver | Marine Military | MIL-DTL-5015 | N | Free Hanging (In-Line) | Aluminum Alloy | Unshielded | |||
Amphenol Industrial Operations | Olive Drab | Neoprene | Environment Resistant | Olive Drab Chromate over Cadmium | Cable Clamp Coupling Nut | 14S-2 | -55 °C | 125 °C | Copper Alloy | Metal | Female Sockets Plug | Military | Silver | Marine Military | MIL-DTL-5015 | N | Free Hanging (In-Line) | Aluminum Alloy | Unshielded | 4 | ||
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 93.23 | |
| 10 | $ 85.56 | |||
| 25 | $ 82.26 | |||
| 50 | $ 79.52 | |||
| 100 | $ 75.13 | |||
Description
General part information
MS3106R14 Series
5 Position Circular Connector Plug, Male Pins Solder Cup
