0039301040

Active

Molex

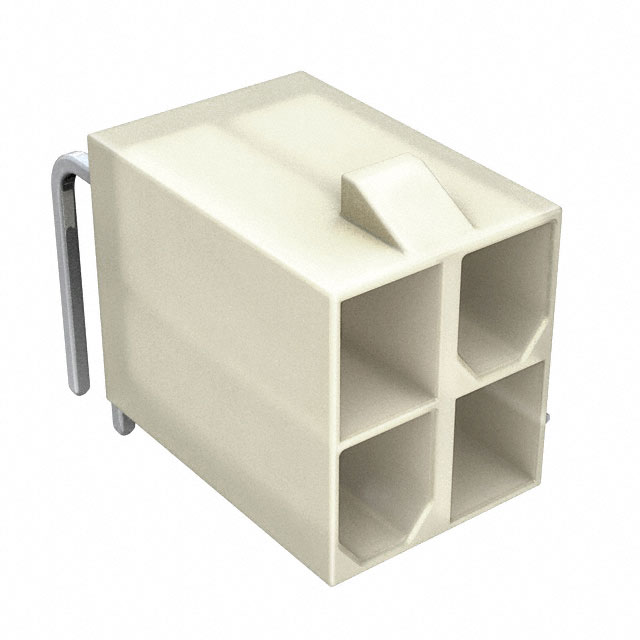

CONN WIRE TO BOARD HDR 4POWER POS 4.2MM SOLDER RA SIDE ENTRY THRU-HOLE MINI-FIT JR BAG

Deep-Dive with AI

Search across all available documentation for this part.

Documents5556-001 Prod Spec Tin Whisker Formation Change 27/Jul/2011 +2

0039301040

Active

Molex

CONN WIRE TO BOARD HDR 4POWER POS 4.2MM SOLDER RA SIDE ENTRY THRU-HOLE MINI-FIT JR BAG

Deep-Dive with AI

Documents5556-001 Prod Spec Tin Whisker Formation Change 27/Jul/2011 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039301040

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

003930 Series

...

Part	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Style	Number of Rows	Fastening Type	Shrouding	Number of Positions	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Connector Type	Insulation Material	Contact Finish - Post	Contact Material	Termination	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Finish - Mating
Molex 0039301040	4.2 mm	0.165 in	Through Hole Right Angle	Board to Cable/Wire	2	Locking Ramp	Shrouded - 4 Wall	4	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	2.54 çm	100 çin	3.6 mm	0.142 in	2.54 µm	100 µin
Molex 0039303056			Through Hole Right Angle	Board to Cable/Wire	1	Locking Ramp	Shrouded - 4 Wall		General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-0	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	2.54 çm	100 çin	3.5 mm	0.138 in	2.54 µm	100 µin	12.8 mm	0.504 in
Molex 0039301101	4.2 mm	0.165 in	Through Hole Right Angle	Board to Cable/Wire	2	Locking Ramp	Shrouded - 4 Wall	10	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	0.76 Ám	30 Áin	3.6 mm	0.142 in	2.54 µm	100 µin			Gold
Molex 0039307052			Through Hole Right Angle	Board to Cable/Wire	1	Locking Ramp	Shrouded - 4 Wall		General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-0	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	2.54 çm	100 çin	3.5 mm	0.138 in	2.54 µm	100 µin	12.8 mm	0.504 in
Molex 0039301049			Through Hole	Board to Cable/Wire	1	Locking Ramp	Shrouded - 4 Wall	4	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	0.9 µm	35.4 µin	3.5 mm	0.138 in	0.9 µm	35 µin	12.8 mm	0.504 in
Molex 0039302045			Through Hole	Board to Cable/Wire	1	Locking Ramp	Shrouded - 4 Wall	4	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-0	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	0.9 µm	35.4 µin	3.5 mm	0.138 in	0.9 µm	35 µin	12.8 mm	0.504 in
Molex 0039306025	4.2 mm	0.165 in	Through Hole	Board to Cable/Wire	2	Locking Ramp	Shrouded - 4 Wall	2	General Purpose Industrial Telecommunications	Square			UL94 V-0	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	2.54 çm	100 çin	3.5 mm	0.138 in	2.54 µm	100 µin	12.8 mm	0.504 in
Molex 0039301141	4.2 mm	0.165 in	Through Hole Right Angle	Board to Cable/Wire	2	Locking Ramp	Shrouded - 4 Wall	14	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	0.76 Ám	30 Áin	3.6 mm	0.142 in	2.54 µm	100 µin			Gold
Molex 0039301100	4.2 mm	0.165 in	Through Hole Right Angle	Board to Cable/Wire	2	Locking Ramp	Shrouded - 4 Wall	10	General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	2.54 çm	100 çin	3.6 mm	0.142 in	2.54 µm	100 µin
Molex 0039301039			Through Hole	Board to Cable/Wire	1	Locking Ramp	Shrouded - 4 Wall		General Purpose Industrial Telecommunications	Square	4.2 mm	0.165 in	UL94 V-2	All	Natural	Header	Polyamide (PA66) Nylon 6/6	Tin	Brass	Solder	Male Pin	0.9 µm	35.4 µin	3.5 mm	0.138 in	0.9 µm	35 µin	12.44 mm	0.49 in
