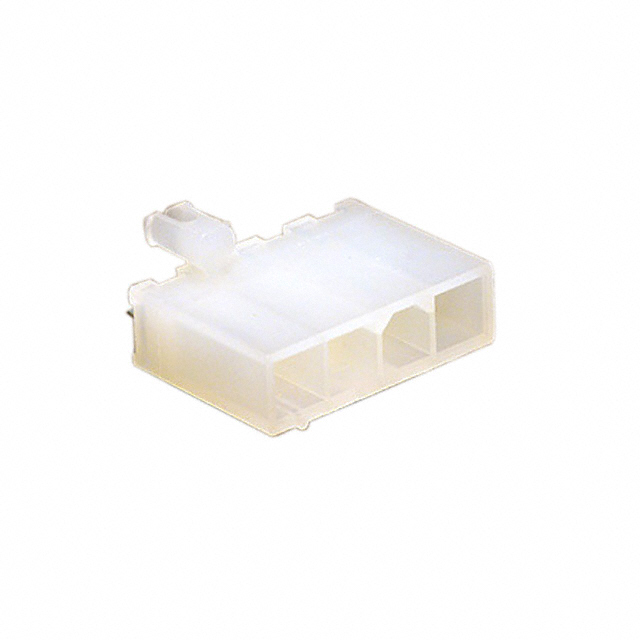

0039301049
ActiveMolex
CONN HEADER VERT 4POS 4.2MM
Deep-Dive with AI
Search across all available documentation for this part.
0039301049
ActiveMolex
CONN HEADER VERT 4POS 4.2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0039301049 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 35.4 µin |
| Contact Finish Thickness - Mating | 0.9 µm |
| Contact Finish Thickness - Post | 35 µin |
| Contact Finish Thickness - Post | 0.9 µm |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 12.8 mm |
| Insulation Height | 0.504 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
003930 Series
...
| Part | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Style | Number of Rows | Fastening Type | Shrouding | Number of Positions | Applications | Contact Shape | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions Loaded | Insulation Color | Connector Type | Insulation Material | Contact Finish - Post | Contact Material | Termination | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 4.2 mm | 0.165 in | Through Hole Right Angle | Board to Cable/Wire | 2 | Locking Ramp | Shrouded - 4 Wall | 4 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 2.54 çm | 100 çin | 3.6 mm | 0.142 in | 2.54 µm | 100 µin | |||
Molex | Through Hole Right Angle | Board to Cable/Wire | 1 | Locking Ramp | Shrouded - 4 Wall | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-0 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 2.54 çm | 100 çin | 3.5 mm | 0.138 in | 2.54 µm | 100 µin | 12.8 mm | 0.504 in | ||||
Molex | 4.2 mm | 0.165 in | Through Hole Right Angle | Board to Cable/Wire | 2 | Locking Ramp | Shrouded - 4 Wall | 10 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 0.76 Ám | 30 Áin | 3.6 mm | 0.142 in | 2.54 µm | 100 µin | Gold | ||
Molex | Through Hole Right Angle | Board to Cable/Wire | 1 | Locking Ramp | Shrouded - 4 Wall | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-0 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 2.54 çm | 100 çin | 3.5 mm | 0.138 in | 2.54 µm | 100 µin | 12.8 mm | 0.504 in | ||||
Molex | Through Hole | Board to Cable/Wire | 1 | Locking Ramp | Shrouded - 4 Wall | 4 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 0.9 µm | 35.4 µin | 3.5 mm | 0.138 in | 0.9 µm | 35 µin | 12.8 mm | 0.504 in | |||
Molex | Through Hole | Board to Cable/Wire | 1 | Locking Ramp | Shrouded - 4 Wall | 4 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-0 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 0.9 µm | 35.4 µin | 3.5 mm | 0.138 in | 0.9 µm | 35 µin | 12.8 mm | 0.504 in | |||
Molex | 4.2 mm | 0.165 in | Through Hole | Board to Cable/Wire | 2 | Locking Ramp | Shrouded - 4 Wall | 2 | General Purpose Industrial Telecommunications | Square | UL94 V-0 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 2.54 çm | 100 çin | 3.5 mm | 0.138 in | 2.54 µm | 100 µin | 12.8 mm | 0.504 in | |||
Molex | 4.2 mm | 0.165 in | Through Hole Right Angle | Board to Cable/Wire | 2 | Locking Ramp | Shrouded - 4 Wall | 14 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 0.76 Ám | 30 Áin | 3.6 mm | 0.142 in | 2.54 µm | 100 µin | Gold | ||
Molex | 4.2 mm | 0.165 in | Through Hole Right Angle | Board to Cable/Wire | 2 | Locking Ramp | Shrouded - 4 Wall | 10 | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 2.54 çm | 100 çin | 3.6 mm | 0.142 in | 2.54 µm | 100 µin | |||
Molex | Through Hole | Board to Cable/Wire | 1 | Locking Ramp | Shrouded - 4 Wall | General Purpose Industrial Telecommunications | Square | 4.2 mm | 0.165 in | UL94 V-2 | All | Natural | Header | Polyamide (PA66) Nylon 6/6 | Tin | Brass | Solder | Male Pin | 0.9 µm | 35.4 µin | 3.5 mm | 0.138 in | 0.9 µm | 35 µin | 12.44 mm | 0.49 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.79 | |
| 10 | $ 0.65 | |||
| 80 | $ 0.54 | |||
| 1122 | $ 0.48 | |||
Description
General part information
003930 Series
Connector Header Through Hole 4 position 0.165" (4.20mm)
