ZF5S-20-01-T-WT-K-TR
ActiveSamtec Inc.

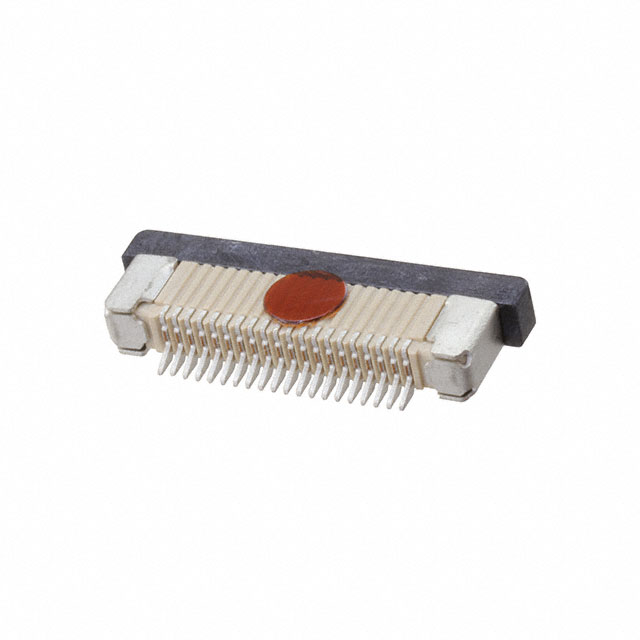

CONN FFC BOTTOM 20POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
ZF5S-20-01-T-WT-K-TR
ActiveSamtec Inc.
CONN FFC BOTTOM 20POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF5S-20-01-T-WT-K-TR |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.8 A |
| Features | Pick and Place Cap, Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FFC |
| Height Above Board | 2.1 mm |
| Height Above Board | 0.083 " |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 50 | $ 2.34 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.77 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 50 | $ 2.34 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.77 | |||
| Tape & Reel (TR) | 1825 | $ 1.38 | ||
| 3650 | $ 1.25 | |||
| 5475 | $ 1.23 | |||
Description
General part information
ZF5S-20 Series
20 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
