ZF5S-20-02-T-WT - ZF5S-20-02-T-WT

ZF5S-20-02-T-WT

Active
Samtec Inc.

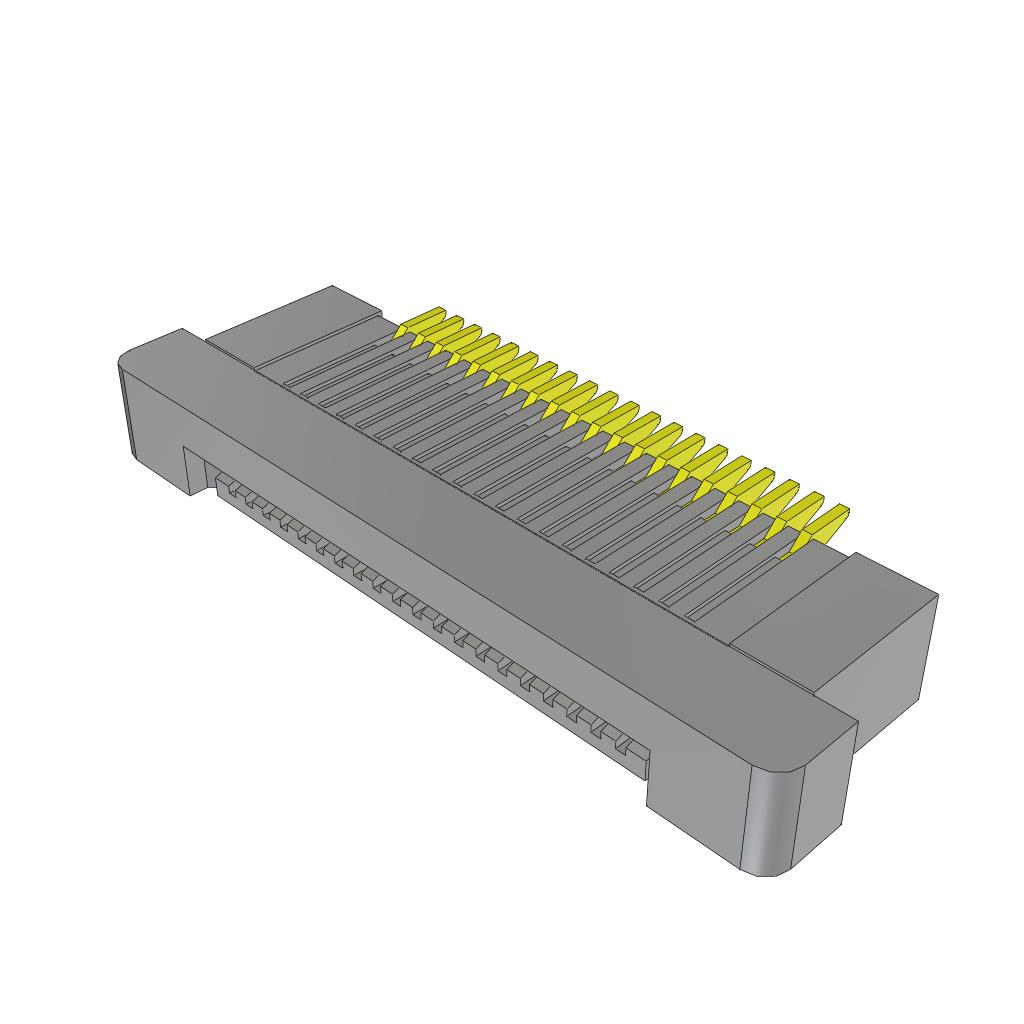

CONN FFC TOP 20POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch+1
ZF5S-20-02-T-WT - ZF5S-20-02-T-WT

ZF5S-20-02-T-WT

Active
Samtec Inc.

CONN FFC TOP 20POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheetZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch+1

Technical Specifications

Parameters and characteristics for this part

SpecificationZF5S-20-02-T-WT
Actuator ColorBlack
Actuator MaterialLiquid Crystal Polymer (LCP)
Cable End TypeStraight
Connector/Contact TypeContacts, Top
Contact FinishTin
Contact MaterialPhosphor Bronze
Current Rating (Amps)1.8 A
FeaturesZero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness0.3 mm
Flat Flex TypeFFC
Height Above Board2.1 mm
Height Above Board0.083 "
Housing ColorNatural
Housing MaterialLiquid Crystal Polymer (LCP)
Locking FeatureSlide Lock
Mounting TypeSurface Mount, Right Angle
Number of Positions20
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Pitch [x]0.5 mm
Pitch [x]0.02 in
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 2.55
50$ 2.08
100$ 1.76
500$ 1.57
1000$ 1.46

Description

General part information

ZF5S-20 Series

20 Position FFC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
