PX0777/UTP
ActiveBULGIN LIMITED
IN-LINE ADAPTER, UNSHIELDED COUPLER, RJ45, RJ45, RJ45, JACK, 8 POSITIONS
Deep-Dive with AI
Search across all available documentation for this part.
PX0777/UTP
ActiveBULGIN LIMITED
IN-LINE ADAPTER, UNSHIELDED COUPLER, RJ45, RJ45, RJ45, JACK, 8 POSITIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0777/UTP |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | Jack, 8p8c (RJ45) |
| Convert To (Adapter End) | 8p8c (RJ45), Jack |
| Features | Circular Threaded Coupling |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Polyamide, Glass Filled |
| Shielding | Unshielded |
| Type | Coupler |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PX0777 Series

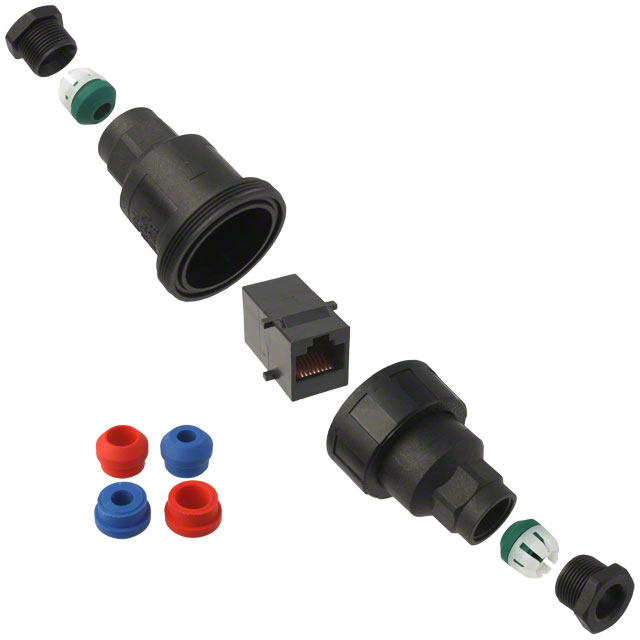

The PX0777/UTP is an in-line UTP Ethernet Buccaneer® Connector with glass filled polyamide body. The Ethernet Buccaneer provides a high degree of environmental sealing for in-line RJ45 connections. Supplied complete with unshielded coupler.
Documents
Technical documentation and resources
