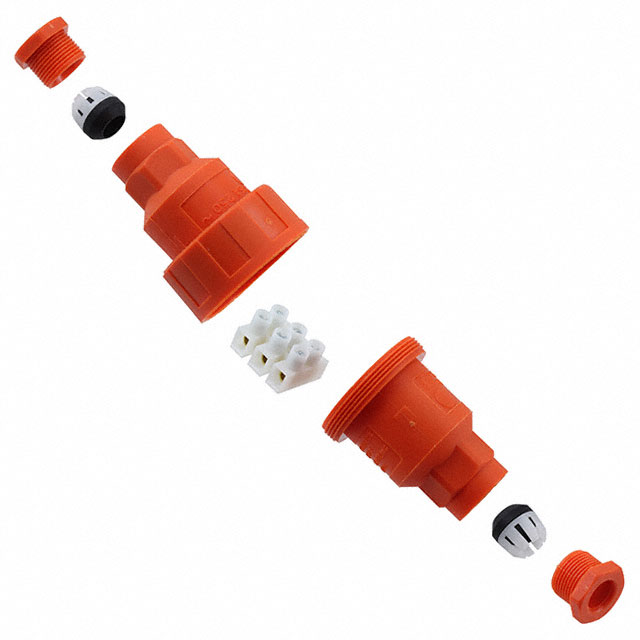

PX0777/OR

Active

BULGIN LIMITED

CONN TERM STRIP 3CIRCUIT

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN TERM STRIP 3CIRCUIT

Technical Specifications

Parameters and characteristics for this part

Specification	PX0777/OR

Barrier Type	Enclosed
Bottom Termination	Closed
Current Rating (Amps)	16 A
Features	Circular Threaded Coupling, Industrial Environments (IP68)
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Circuits	3
Number of Rows	2
Number of Wire Entries	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Terminal Block Type	Eurostyle Terminal Strip
Voltage Rating	250 VDC
Wire Gauge	RG58/C, URM43, URM76

Part	Contact Finish	Shielding	Shell Material, Finish	Contact Material	Ingress Protection	Convert To (Adapter End)	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Convert From (Adapter End)	Housing Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Ratings	Number of Circuits	Voltage Rating	Terminal Block Type	Number of Rows	Barrier Type	Number of Wire Entries	Material Flammability Rating	Material - Insulation	Wire Gauge	Bottom Termination	Current Rating (Amps)
BULGIN LIMITED PX0777/CAT5ESTP	Gold	Shielded	Polyamide Glass Filled	Phosphor Bronze	IP68 - Dust Tight Waterproof	8p8c (RJ45) Jack	Free Hanging (In-Line)	50 µin	1.27 µm	Jack 8p8c (RJ45)	Acrylonitrile Butadiene Styrene (ABS)	Circular Threaded Coupling	-40 °C	70 °C	Coupler	Cat5e
BULGIN LIMITED PX0777/UTP	Gold	Unshielded	Polyamide Glass Filled	Phosphor Bronze	IP68 - Dust Tight Waterproof	8p8c (RJ45) Jack	Free Hanging (In-Line)	50 µin	1.27 µm	Jack 8p8c (RJ45)	Acrylonitrile Butadiene Styrene (ABS)	Circular Threaded Coupling	-40 °C	70 °C	Coupler
BULGIN LIMITED PX0777/OR							Free Hanging (In-Line)					Circular Threaded Coupling Industrial Environments (IP68)	-20 C	70 °C			3	250 VDC	Eurostyle Terminal Strip	2	Enclosed	6	UL94 HB	Glass Filled Nylon Polyamide (PA)	RG58/C URM43 URM76	Closed	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.48

General part information

3 Circuit Eurostyle Terminal Strip Connector
