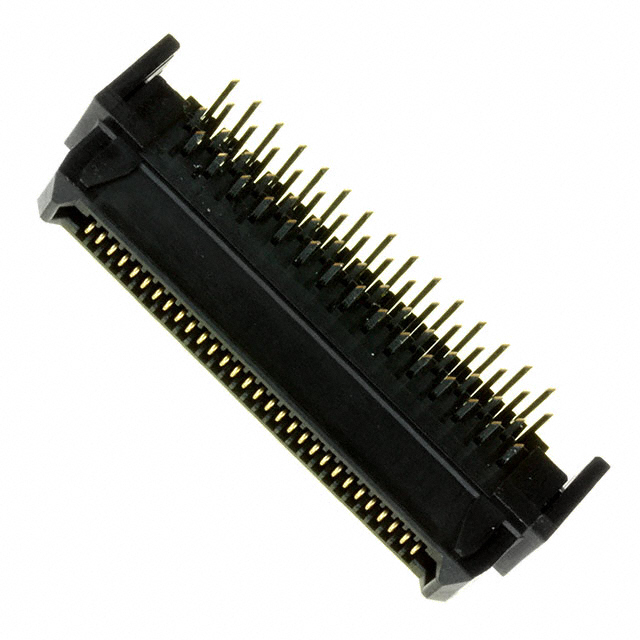

TX24-60R-LT-N1E

Active

JAE Electronics

BOARD STACKING CONNECTOR, 60 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, RECEPTACLE, LEAD FREE

Search across all available documentation for this part.

Active

JAE Electronics

BOARD STACKING CONNECTOR, 60 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, SOLDER TERMINAL, RECEPTACLE, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-60R-LT-N1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	9 mm
Height Above Board	0.354 in
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Mated Stacking Heights	Contact Finish	Connector Type	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]
JAE Electronics TX24-60R-12ST-N1E	4 Áin	0.1 Ám	60	Through Hole	18 mm 20 mm 24 mm	Gold	Receptacle Outer Shroud Contacts	16.3 mm	0.642 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-LT-H1E	4 Áin	0.1 Ám	60	Through Hole Right Angle		Gold	Receptacle Outer Shroud Contacts	9 mm	0.354 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-6ST-N1E	4 Áin	0.1 Ám	60	Through Hole	12 mm 14 mm 18 mm	Gold	Receptacle Outer Shroud Contacts	10.3 mm	0.406 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-6ST-H1E	4 Áin	0.1 Ám	60	Through Hole	12 mm 14 mm 18 mm	Gold	Receptacle Outer Shroud Contacts	10.3 mm	0.406 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-10ST-H1E	4 Áin	0.1 Ám	60	Through Hole	16 mm 18 mm 22 mm	Gold	Receptacle Outer Shroud Contacts	14.3 mm	0.563 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-12ST-H1E	4 Áin	0.1 Ám	60	Through Hole	18 mm 20 mm 24 mm	Gold	Receptacle Outer Shroud Contacts	16.3 mm	0.642 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-LT-N1E	4 Áin	0.1 Ám	60	Through Hole Right Angle		Gold	Receptacle Outer Shroud Contacts	9 mm	0.354 in	2	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	528	$ 1.52

General part information

60 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
