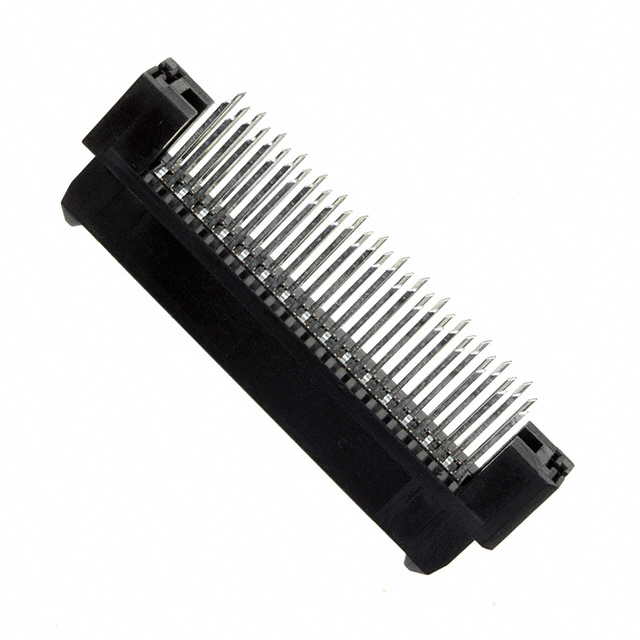

TX24-60R-12ST-N1E

Active

JAE Electronics

CONN RCPT 60POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-60R-12ST-N1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	16.3 mm
Height Above Board	0.642 in
Mated Stacking Heights	18 mm, 24 mm, 20 mm
Mounting Type	Through Hole
Number of Positions	60
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Mated Stacking Heights	Contact Finish	Connector Type	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]
JAE Electronics TX24-60R-12ST-N1E	4 Áin	0.1 Ám	60	Through Hole	18 mm 20 mm 24 mm	Gold	Receptacle Outer Shroud Contacts	16.3 mm	0.642 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-LT-H1E	4 Áin	0.1 Ám	60	Through Hole Right Angle		Gold	Receptacle Outer Shroud Contacts	9 mm	0.354 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-6ST-N1E	4 Áin	0.1 Ám	60	Through Hole	12 mm 14 mm 18 mm	Gold	Receptacle Outer Shroud Contacts	10.3 mm	0.406 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-6ST-H1E	4 Áin	0.1 Ám	60	Through Hole	12 mm 14 mm 18 mm	Gold	Receptacle Outer Shroud Contacts	10.3 mm	0.406 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-10ST-H1E	4 Áin	0.1 Ám	60	Through Hole	16 mm 18 mm 22 mm	Gold	Receptacle Outer Shroud Contacts	14.3 mm	0.563 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-12ST-H1E	4 Áin	0.1 Ám	60	Through Hole	18 mm 20 mm 24 mm	Gold	Receptacle Outer Shroud Contacts	16.3 mm	0.642 in	2	0.05 in	1.27 mm
JAE Electronics TX24-60R-LT-N1E	4 Áin	0.1 Ám	60	Through Hole Right Angle		Gold	Receptacle Outer Shroud Contacts	9 mm	0.354 in	2	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
