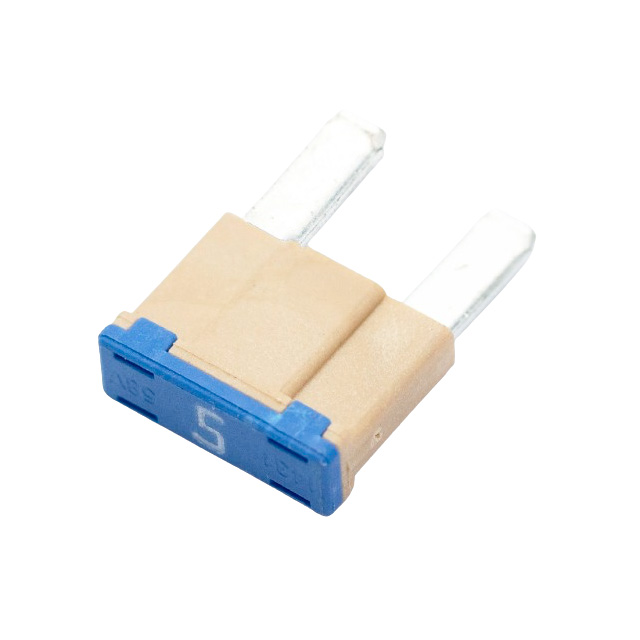

ANM58-5A
ActiveOptiFuse
FUSE AUTOMOTIVE 5A 58VDC BLADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM58-5A
ActiveOptiFuse
FUSE AUTOMOTIVE 5A 58VDC BLADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANM58-5A |
|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Tan |
| Current Rating (Amps) | 5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Miniature |
| Response Time | Fast Blow |
| Size / Dimension [x] | 11.8 mm |
| Size / Dimension [x] | 0.465 in |
| Size / Dimension [y] | 4 mm |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [z] | 0.354 in |
| Size / Dimension [z] | 9 mm |
| Voltage Rating - DC | 58 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.07 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.49 | |||
Description
General part information
ANM58 Series
5 A AC 58 V DC Fuse Automotive Requires Holder Blade, Miniature
